MIKROE Pressure 3 Click

Product Overview

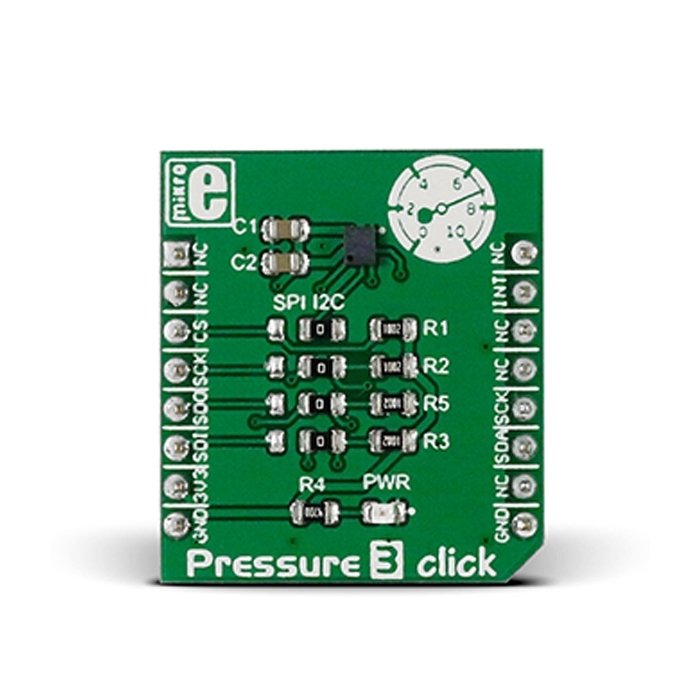

Pressure 3 Click is a mikroBUS™ add-on board that carries an Infineon DPS310 digital barometric pressure sensor. It has an operating range from 300 to 1200 hPa with a relative accuracy of 0.06 hPa and absolute accuracy of 1 hPa.

DPS310 is a fast sensor with typical measurement time of 27.6 ms for standard mode, down to 3.6 ms in low precision mode.

The digital measurements are in 24-bit resolution. Up to 32 results can be stored in a FIFO buffer.

Pressure 3 Click has both I2C and SPI outputs. The four interface configuration buttons are soldered to mikroBUS™ I2C pins by default. The Click uses a 3.3V power supply.
