MIKROE Pressure Click

Name: MIKROE Pressure Click
SKU: SEN-20453
Price: 24.95 USD
Availability: OutOfStock

SKU: SEN-20453

Out of stock

SKU

SEN-20453

Pressure Click is a compact and easy solution for adding pressure measurement to your design.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

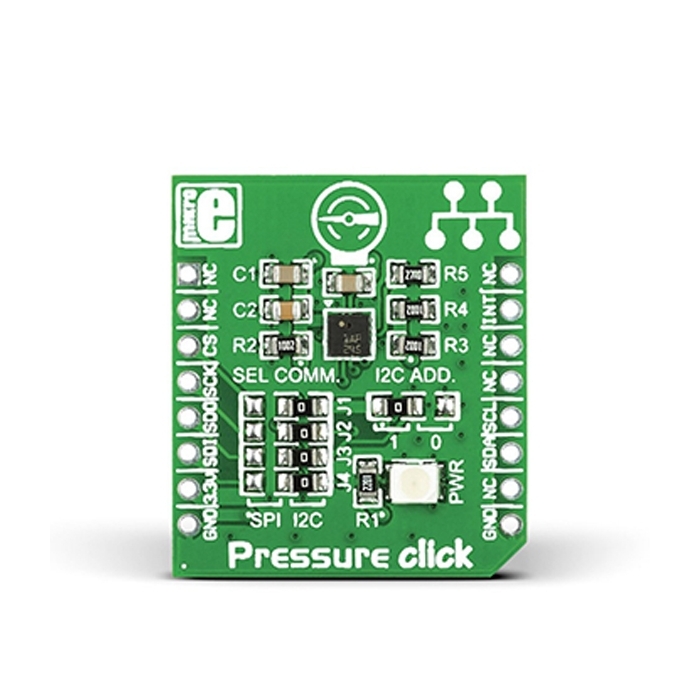

Pressure Click is a compact and easy solution for adding pressure measurement to your design. It features LPS331AP digital output pressure sensor. LPS331AP IC is an ultra compact absolute piezoresistive pressure sensor capable to measure pressure (260-1260 mbar) or temperature (-40°C to 80°C) and provide a digital signal to main board microcontroller. Pressure Click communicates with the target board microcontroller via mikroBUS™ SPI (MOSI, MISO, SCK, CS), I2C (SDA, SCL) and INT lines. The board is designed to use 3.3V power supply only.
