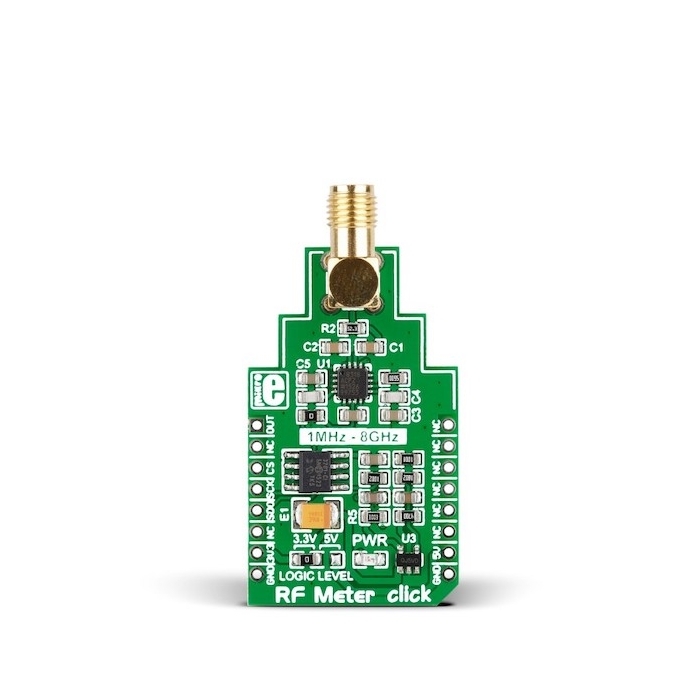

MIKROE RF Meter Click
WRL-18827
MIKROE RF Meter Click
SKU: WRL-18827
Out of stock
SKU
WRL-18827
RF Meter Click is a radio frequency power measurement device covering a frequency span from 1 MHz to 8 GHz over a 60 dB range (approximately).
Product Overview
RF Meter Click is a radio frequency power measurement device covering a frequency span from 1 MHz to 8 GHz over a 60 dB range (approximately). It enables monitoring and measuring frequency levels to ensure the proper functioning and leak detection. An external antenna acquires the signal, which is then processed by the AD8318 logarithmic detector, from Analog Devices. The resulting voltage is fed into an MCP3201 ADC. For communicating with the target board MCU, the mikroBUS SPI interface is used (CS, SCK, MISO pins), with additional TEMP OUT pin.
Similar Items
Features & Specs
- Interface: GPIO, SPI
- Compatibility: mikroBUS™
- Dimensions: 42.9 x 25.4mm
- Input Voltage: 3.3V or 5V
Documentation
Customer Reviews
MIKROE RF Meter Click
WRL-18827
Stock and Customer Discounts
$44.95 retail price.
Available Discounts
- $42.70 | 25+ units
- $40.46 | 100+ units
