Mikroe RFID 2 Click
SEN-17691
Mikroe RFID 2 Click
SKU: SEN-17691
Out of stock
SKU
SEN-17691

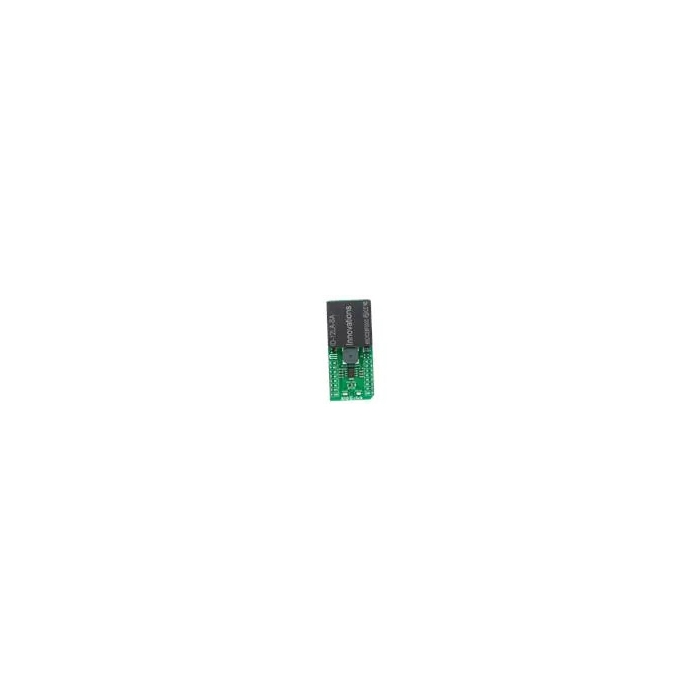

Mikroe RFID 2 Click features a stand-alone RFID reader with a built-in antenna for embedded applications.
Product Overview
Mikroe RFID 2 Click features a stand-alone RFID reader with a built-in antenna for embedded applications. The board contains the ID Innovations ID-12LA-SA advanced low-cost RFID reader module. It's usable with 38 different tags. This small 125kHz reader has a 9600bps TTL/RS232 output with Magnetic, Wiegand, or ASCII format. It has read ranges of 12cm and 18cm and possesses a remotely controlled channel that can be used to operate with user peripherals.
Similar Items
Features & Specs
- On-board modules
- ID Innovations ID-12LA-SA low-cost RFID reader module designed to be used in stand-alone or remote-controlled applications to identify and track tags attached to objects
- Low power consumption
- Autonomous mode
- Remote-controlled auxiliary Channel
- Long-range 12cm and 18cm
- UART interface
- mikroBUS compatibility
- L (57.15mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Customer Reviews
Mikroe RFID 2 Click
SEN-17691
Stock and Customer Discounts
$114.95 retail price.
Available Discounts
- $109.20 | 25+ units
- $103.46 | 100+ units
