MIKROE RTC 4 Click

Name: MIKROE RTC 4 Click
SKU: DEV-20393
Price: 20.95 USD

SKU: DEV-20393

RTC4 Click carries DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface and a programmable interrupt for system output.

Out of stock

SKU

DEV-20393

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

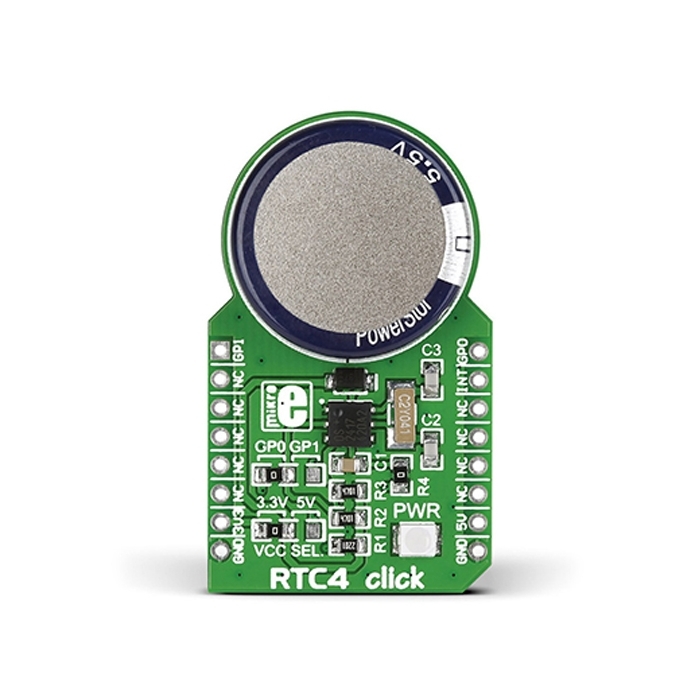

RTC4 Click carries DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface and a programmable interrupt for system output. The clock frequency is derived from an onboard 32.768KHz oscillator. An integrated backup energy source maintains a charge with an onboard coin cell supercapacitor. The clock has an accuracy of +/-2 minutes per month at a 25 degrees Celsius temperature. Depending on the position of the onboard jumper, RTC4 Click communicates with the target board MCU either through mikroBUS AN or PWM pin (here, GPI01, GPIO0), plus the INT pin. The board is designed to use either a 3.3V or 5V power supply.
