Mikroe Spectrometer Click
DEV-17141
Mikroe Spectrometer Click
SKU: DEV-17141
Out of stock
SKU
DEV-17141

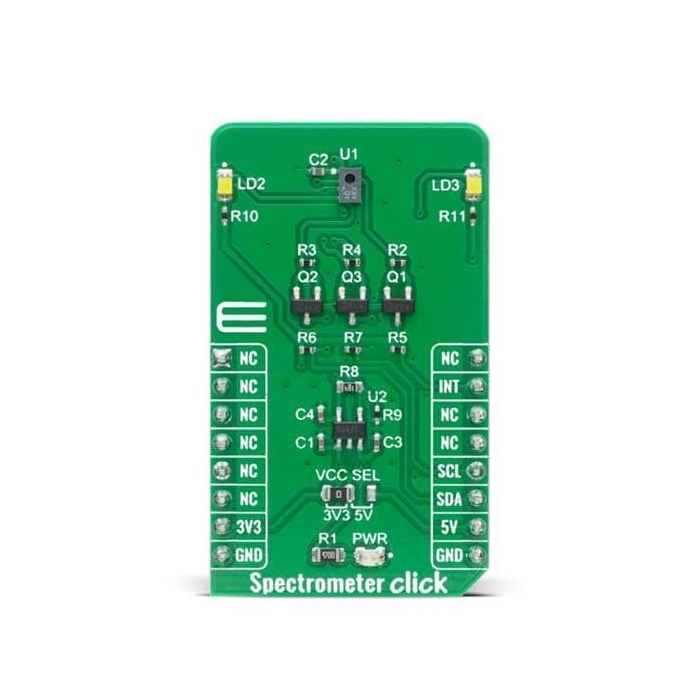

Mikroe Spectrometer Click features an 11-channel spectrometer for spectral identification and color matching applications.
Product Overview
Mikroe Spectrometer Click features an 11-channel spectrometer for spectral identification and color matching applications. The board features the AMS-AG AS7341 with a spectral response defined in 350nm to 1000nm wavelengths. Control and Spectral data access are implemented through a serial I2C interface with very low power consumption. AS7341 also integrates a dedicated channel to detect 50Hz or 60Hz ambient light flicker.
Features & Specs
- On-board modules: AS7341
- 11-Channel Spectral Sensor
- 350nm to 1000nm spectral response
- 50Hz or 60Hz ambient light flicker
- 16-bit light-to-frequency converter
- GPIO, I2C interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Documentation
Customer Reviews
Mikroe Spectrometer Click
DEV-17141
Stock and Customer Discounts
$26.95 retail price.
Available Discounts
- $25.60 | 25+ units
- $24.26 | 100+ units
