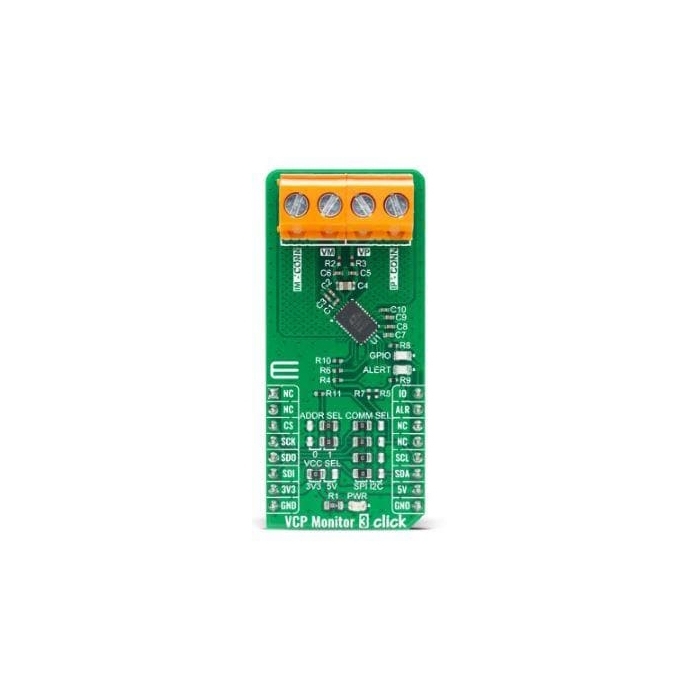

Mikroe VCP Monitor 3 Click
Mikroe VCP Monitor 3 Click is a high precision Voltage, Current, and Power measurement board with an input capable of taking up to 15V.
Product Overview
Mikroe VCP Monitor 3 Click is a high precision Voltage, Current, and Power measurement board with an input capable of taking up to 15V. The VCP Monitor 3 features the Analog Devices LTC2947 high precision power and energy monitor with an internal sense resistor supporting up to ±30A. Three internal no latency delta-sigma ADCs ensure accurate measurement of voltage and current. The board is ideal for a wide range of applications with up to 0.5% voltage and 1% current accuracy while high-bandwidth analog multiplication provides precise power measurement. An internal 300μΩ, temperature-compensated sense resistor minimizes efficiency loss while enabling high accuracy current measurement over the full temperature range.
Features & Specs
- On-board modules
- Analog Devices LTC2947 High Precision Power and Energy Monitor with an internal sense resistor
- Measures Current with ±30A range
- Voltage with 0V to 15V input range
- Provides 0.5% Voltage Accuracy
- 1% Current and Charge Accuracy
- 1.2% Power and Energy Accuracy
- Alerts When Thresholds Exceeded
- I2C, SPI, GPIO interface
- mikroBUS compatibility
- 57.15mm x 25.4mm click board size
- 3.3V or 5V input voltage
