Product Overview

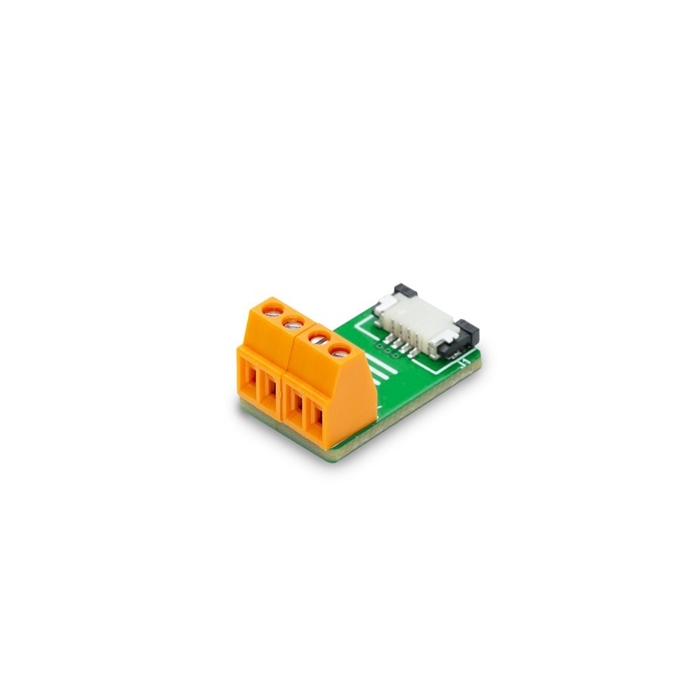

ZIF to Terminal Block for BLDC represents a small-sized adapter board that allows you to connect all BLDC motors without a Hall sensor and a flexprint port to target Brushless Click board™. The adapter consists of one ZIF connector ZIF1004UH with four pins of 1.0mm pitch, and two 2.54mm pitch screw terminals on opposite sides of the board. Connect the screw terminals to target Brushless Click board with appropriate COM, U, V, and W pinout, and then connect 4-pole flexprint connector with all flexprint port sensorless BLDC motors.
