Non-Isolated DC/DC Converter - 4A, 6-14.4Vin, 0.7-1.8Vout
These are an ultra-thin high efficiency integrated power solution that combines a 4A DC/DC converter with components.
Product Overview

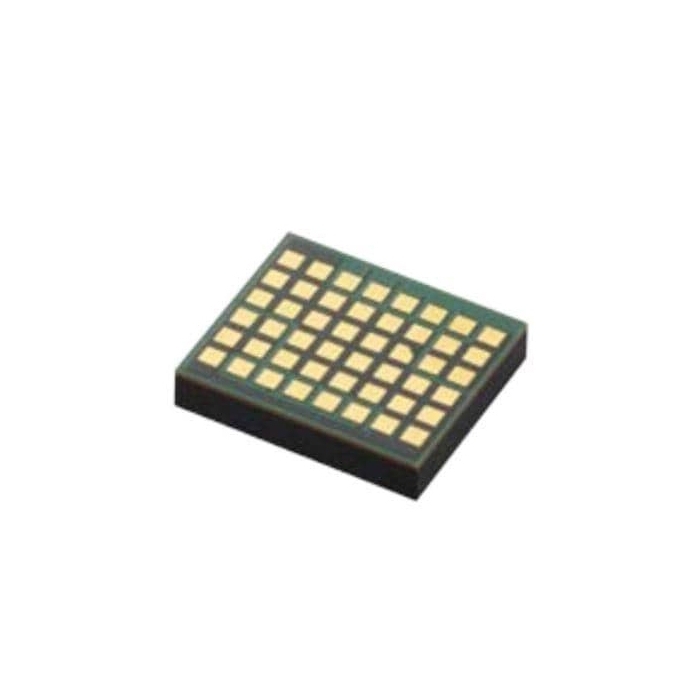

Murata MY Series UltraBK™ 4A/6A DC/DC Converter Modules are miniature UltraBK, called "Ultra Block", an ultra-thin high efficiency integrated power solution that combines a 4A or 6A DC/DC converter with components. These totally integrated modules provide up to 90% or 90.5% efficiency in a small, thin LGA package that measures 10.5mm x 9.0mm x 2.1mm. The easy-to-use module terminal design allows a simple power layout and maximum efficiency by minimizing routing parasitic resistance. Other features include power good output, overcurrent and overtemperature protection, remote on / off control, and output voltage sense.
Murata MY Series UltraBK 4A/6A DC/DC Converter Modules are well-suited for use in PCIe / server applications, FPGA and DSP, datacom / telecom systems, distributed bus architectures (DBA), programmable logic, and mixed voltage systems. Some versions can also be used in I2C 6.0-compatible serial interfaces operating up to 1MHz.
Features & Specs
- Number of Outputs: 1 Output
- Input Voltage, Nominal: 12V
- Input Voltage, Min: 6V
- Input Voltage, Max: 14.4V
- Output Voltage-Channel 1: 0.7V to 1.8V
- Output Current-Channel 1: 4A
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Mounting Style: SMD/SMT
- Length: 10.5mm
- Width: 9.0mm
- Height: 2.1mm
