Nordic Semiconductor Thingy:91™ Multisensor Prototyping Kit
KIT-16820

Nordic Semiconductor Thingy:91™ Multisensor Prototyping Kit

SKU: KIT-16820
In stock
SKU
KIT-16820

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

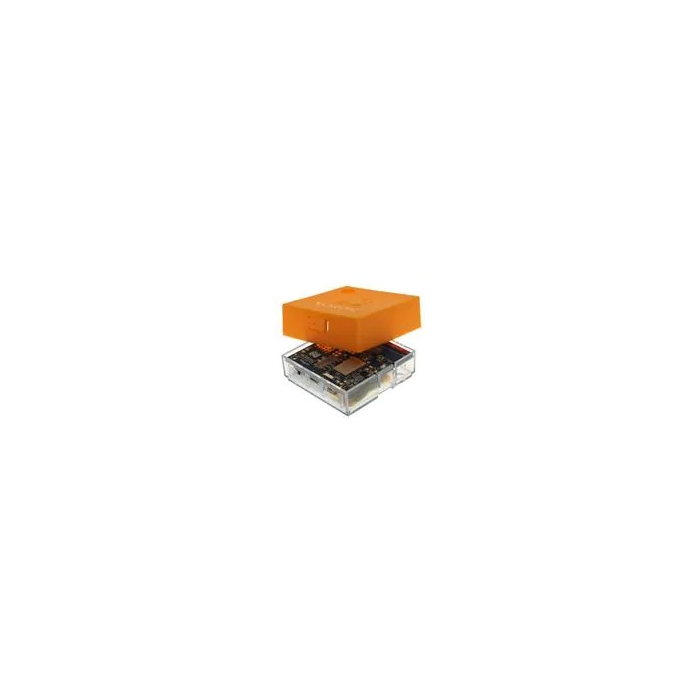

The Nordic Thingy:91 is an easy-to-use battery-operated prototyping platform for cellular IoT using LTE-M, NB-IoT and GPS. It is ideal for creating Proof-of-Concept (PoC), demos and initial prototypes in your cIoT development phase.

Thingy:91 is built around the nRF9160 SiP and is certified for a broad range of LTE bands globally, meaning the Nordic Thingy:91 can be used just about anywhere in the world. The cellular communication can be interleaved elegantly with GPS positioning acquisition making it perfect for sophisticated asset-tracking product ideas. The kit comes preloaded with a sophisticated asset tracking application.

The kit is packed with a multitude of sensors for motion, impact, air quality and much more. The nRF Connect SDK supports Thingy:91 and there are examples for all sensors and connectivity functionality.

There is an nRF52840 multiprotocol SoC on the Thingy:91. This offers the option of adding Bluetooth Low Energy connectivity to your project ideas.

The Nordic Thingy:91 comes complete with a global use SIM card from iBasis that has a free 10 MB data plan to get you up and running immediately. The Thingy:91 and SIM can be provisioned and monitored using nRF Connect for Cloud which is Nordic Semiconductor’s cloud demonstration, evaluation and test platform.

Features & Specs

  • Battery-operated prototyping platform for the nRf9160 SiP
  • 700MHz to 900MHz + 1710MHz to 2200MHz LTE band support
  • CE, FCC certifications
  • nRF52840 multiprotocol system on a chip (SoC)
  • LTE-M/NB-IoT/GPS antennas
  • Nano/4FF SIM card slot
  • User-programmable button and RGB LEDs
  • Environmental sensor for temperature, humidity, air quality, and air pressure
  • Color and light sensor
  • Low-power accelerometer and high-g accelerometer
  • Buzzer
  • 4 x NMOS transistors for external DC motors or LEDs
  • Rechargeable Li-Po battery with 1440mAh capacity.
  • nRF9160 SiP
  • Multimode LTE-M/NB-IoT modem
  • GCF certified for global operation
  • 700MHz to 2200MHz LTE band support
  • 23dBm output power
  • GPS
  • eDRX and PSM power-saving modes
  • Coverage enhancement modes
  • Single-pin 50‎Ω antenna interface
  • UICC interface
  • nRF52840 WLCSP
  • Board controller
  • Bluetooth LE and NFC support
  • Arm® Cortex®-M4F @ 64MHz
  • 1MB flash & 256kB RAM
  • USB
