NTMFS015N10MCLT1G Single N-Channel Power MOSFET
COM-17438
NTMFS015N10MCLT1G Single N-Channel Power MOSFET
SKU: COM-17438
In stock
SKU
COM-17438
ON Semiconductor NTMFS015N10MCLT1G Single N-Channel Power MOSFET is designed for compact and efficient designs that require high thermal performance.
Product Overview

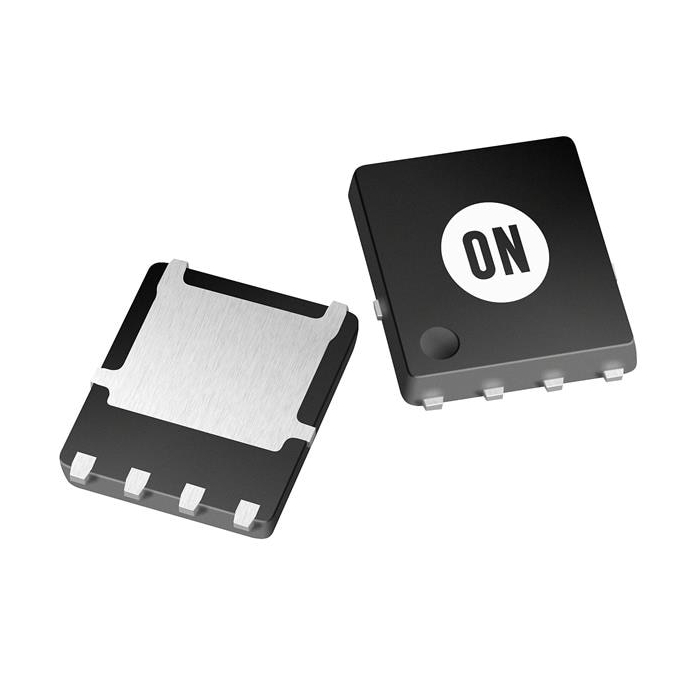

ON Semiconductor NTMFS015N10MCLT1G Single N-Channel Power MOSFET is designed for compact and efficient designs that require high thermal performance. This MOSFET offers low drain-to-source resistance (RDS(on)) to minimize conduction losses and low gate charge (QG) and capacitance to minimize driver losses. The NTMFS015N10MCLT1G MOSFET comes in a small DFN5 package with 5mm x 6mm dimensions. Typical applications include primary DC-DC MOSFET, Synchronous Rectifier (SR) in DC-DC and AC-DC, motor drives, and SR in USB Type-C.
Similar Items
Features & Specs
- Low RDS(on) to minimize conduction losses:
- 12.2mΩ @ 10V (maximum)
- 18.3 mΩ @ 4.5V (maximum)
- Low QG and capacitance to minimize driver losses
- 100V drain-to-source voltage (VDSS)
- 54A drain current (ID)
- Small footprint (5mm x 6mm) for compact design
- DFN5 package
Documentation
Customer Reviews
NTMFS015N10MCLT1G Single N-Channel Power MOSFET
COM-17438
Stock and Customer Discounts
$1.95 retail price.
Available Discounts
- $1.85 | 25+ units
- $1.76 | 100+ units
