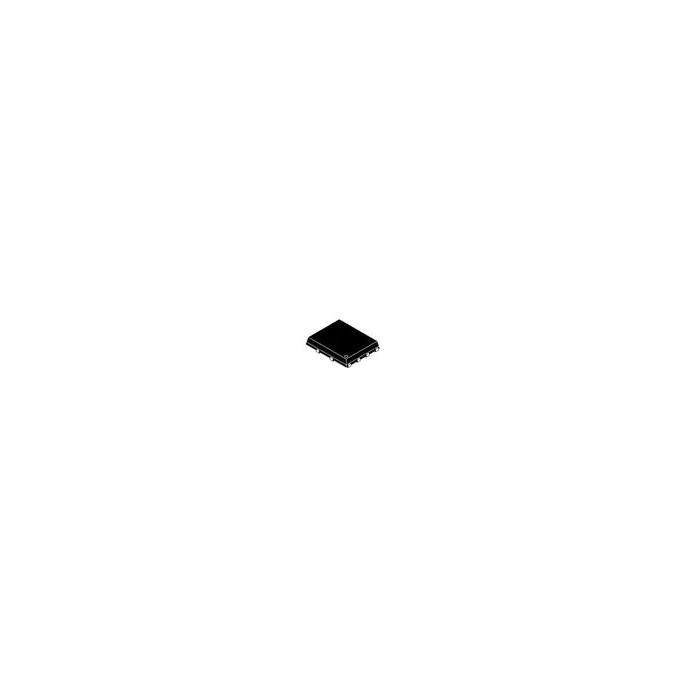

NVMFD6H846NL Dual N-Channel Power MOSFET
COM-17444
NVMFD6H846NL Dual N-Channel Power MOSFET
SKU: COM-17444
Out of stock
SKU
COM-17444
ON Semiconductor NVMFD6H846NL Dual N-Channel Power MOSFET is designed for compact and efficient designs that include high thermal performance.
Product Overview
ON Semiconductor NVMFD6H846NL Dual N-Channel Power MOSFET is designed for compact and efficient designs that include high thermal performance. This MOSFET features low RDS(on) to minimize conduction losses and low QG/capacitance to minimize driver losses. The NVMFD6H846NL MOSFET comes in a small footprint with 5mm x 6mm dimensions. This MOSFET is AEC-Q101 qualified and PPAP capable. Typical applications include reverse battery protection, power switches (high side driver, low side driver, and H-bridges), and switching power supplies.
Similar Items
Features & Specs
- Low drain-to-source resistance (RDS(on)) to minimize conduction losses:
- 15mΩ at 10V
- 19mΩ at 4.5V
- 31A maximum continuous drain current (ID)
- 80V drain-to-source voltage (V(BR)DSS)
- Low QG and capacitance to minimize driver losses
- AEC-Q101 qualified and PPAP capable
- Small footprint with 5mm x 6mm dimensions for compact design
Documentation
Customer Reviews
NVMFD6H846NL Dual N-Channel Power MOSFET
COM-17444
Stock and Customer Discounts
$2.95 retail price.
Available Discounts
- $2.80 | 25+ units
- $2.66 | 100+ units
