Piezo Vibration Sensor - Small Vertical
SEN-09199

Piezo Vibration Sensor - Small Vertical

SKU: SEN-09199
$9.95
In stock
SKU
SEN-09199
In stock
Stock/Discounts

Product Overview

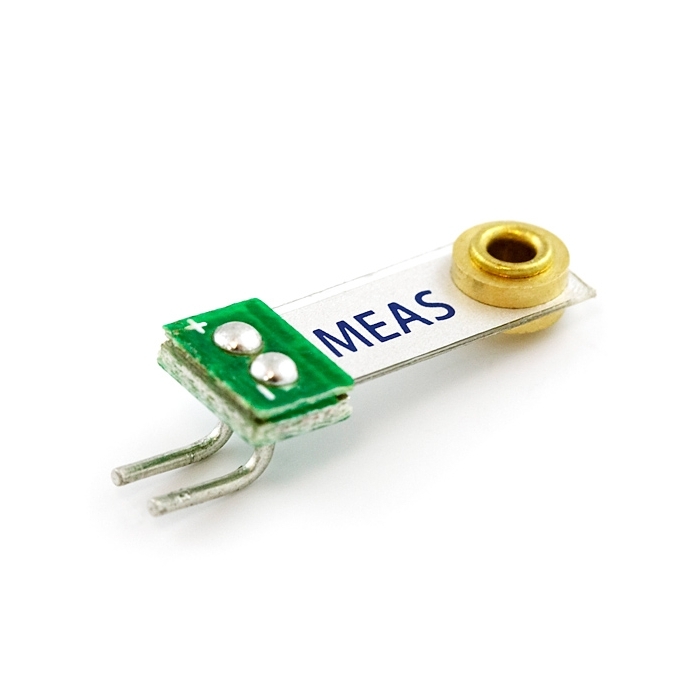

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and 'tap' inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • Breadboard friendly leads

Documents:


Hookup Accessories

Customer Reviews

Piezo Vibration Sensor - Small Vertical
Piezo Vibration Sensor - Small Vertical
$9.95
SEN-09199

Stock and Customer Discounts

$9.95 retail price.

Available Discounts

  • $9.45 | 25+ units
  • $8.96 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
