Pimoroni Automation HAT Mini
DEV-16822

Pimoroni Automation HAT Mini

SKU: DEV-16822
In stock
SKU
DEV-16822

Perfect for home automation projects includes a relay, 3x buffered input & output, 3x analog input (all 24V rated), and a 0.96" full color IPS LCD display.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

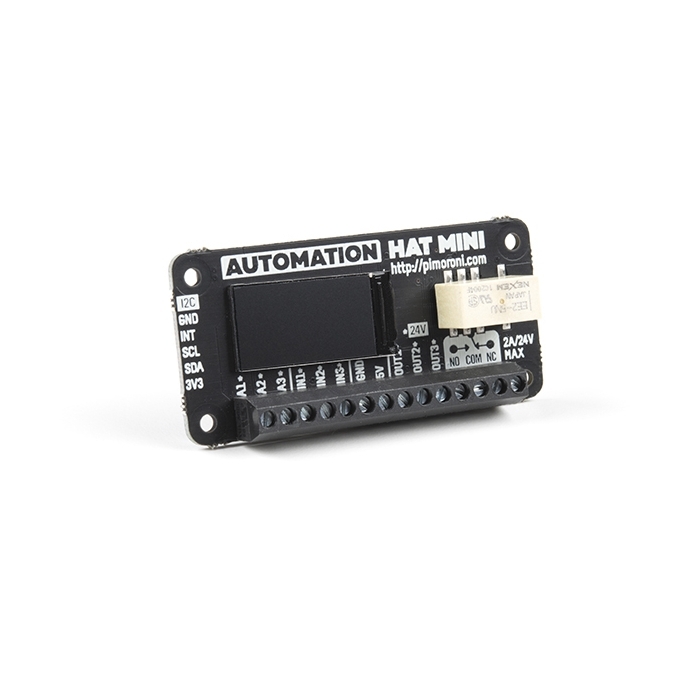

The Pimoroni Automation HAT Mini is perfect for home automation projects, giving your greenhouse intelligent sprinklers, for scheduling your fish feeding, or for controlling low-voltage lighting systems. The Automation HAT Mini is equipped with a relay, three buffered inputs three outputs, and three analog inputs, all of which are 24V-tolerant. Last but not least, the HAT has a beautiful 0.96" full-color IPS LCD to display the status of your systems.

Use the buffered inputs to sense the on/off state of your devices, or get more granularity with the analog inputs that measure the input voltage with 12-bit accuracy. The sinking outputs can sink a total of 500mA across the three channels. For higher-current loads, you can use the relay that can tolerate up to 2A at 24V, and take advantage of the normally-open or normally-closed sides to give the correct failover state.

A female header is added on the underside of the board with the correct pinout for the Pimoroni breakout range. This opens up a whole host of nifty possibilities!

Hookup Accessories

Features & Specs

  • 0.96" color LCD (160x80)
  • 1 x 24V @ 2A relay (NC and NO terminals)
  • 3 x 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy)
  • 3 x 24V tolerant buffered inputs
  • 3 x 24V tolerant sinking outputs
  • 3.5mm screw terminals
  • Pimoroni breakout-compatible pin header
  • Mini HAT-format board
  • Fully-assembled (no soldering required)
  • Compatible with all 40-pin header Raspberry Pi models
  • Dimensions: 65mm x 30mm x 16.8mm

Documentation

Customer Reviews

Pimoroni Automation HAT Mini
Pimoroni Automation HAT Mini DEV-16822

Stock and Customer Discounts

$24.95 retail price.

Available Discounts

  • $23.70 | 10+ units
  • $21.21 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
