PINECIL GuideProduct Overview

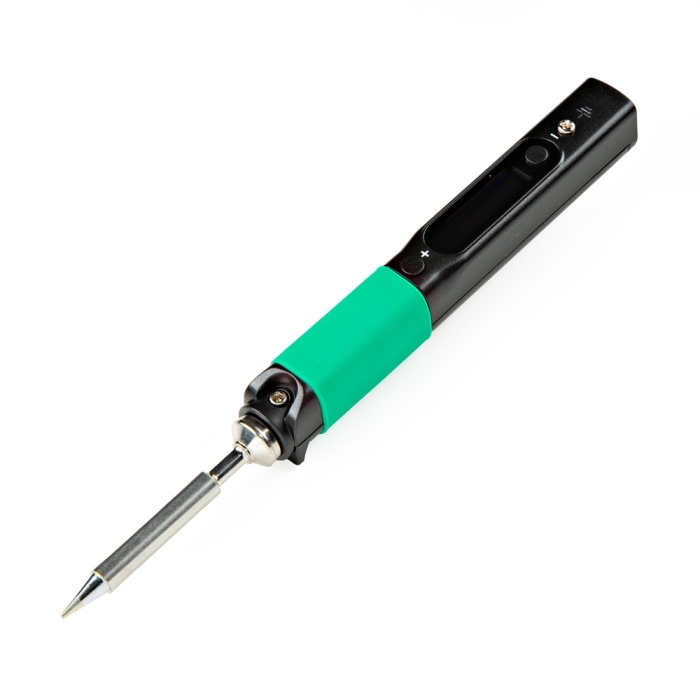

Get your projects wired up quickly with the PINECIL, a smart, mini, portable soldering iron that reaches operating temperature in just six seconds. Powered by a 32-bit RISC-V SoC, this compact iron delivers precise digital temperature control from 100°C to 400°C. An easy-to-read OLED display and integrated adjustment buttons allow you to dial in the exact heat you need for everything from delicate SMD components to heavy-duty wire splicing.
Smart and Portable Soldering
Whether you are working at a dedicated electronics desk or fixing connections in the field, this iron is built for maximum flexibility and user safety.
- Dual Power Options: Power the iron using either a high-wattage USB-C cable (PD and QC 3.0 supported) or a standard DC5525 barrel jack, making it easy to use existing bench supplies or even tool batteries.
- Auto Standby: A built-in IMU detects motion, automatically dropping the temperature into sleep mode when you set it down to prevent burns and preserve the tip.
Did we mention that this iron is pre-loaded with open-source firmware? The PINECIL runs on Ralim's IronOS, enabling customization and community-driven features you will not find on standard irons.
The included B2 soldering tip installs quickly, and the lightweight plastic body features a metal clip for easy handling. Simply plug it into your preferred power source, set your temperature, and get back to building.
