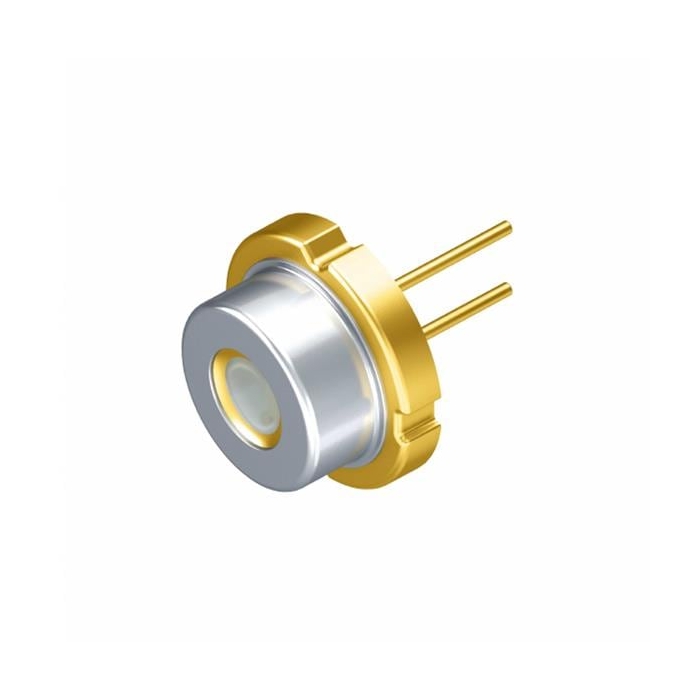

PLPT9 5W Metal Can® Blue Laser Diode
COM-18605
PLPT9 5W Metal Can® Blue Laser Diode
SKU: COM-18605
Out of stock
SKU
COM-18605
OSRAM Opto Semiconductors PLPT9 5W Metal Can® Blue Laser Diode provides a high optical power of 5W for all non-automotive applications.
Product Overview
OSRAM Opto Semiconductors PLPT9 5W Metal Can® Blue Laser Diode provides a high optical power of 5W for all non-automotive applications. The PLPT9 Blue Laser Diode offers excellent thermal resistance and performance, with ESD protection included. Best-in-class reliability is achieved via a hermetically sealed package. The OSRAM Opto Semiconductors PLPT9 5W Metal Can Blue Laser Diode is available in a TO90 package and has an operating temperature of -20°C to +90°C.
Features & Specs
- 5W Output power
- 3.0A Forward Current
- 4.3V Operating voltage
- 0.25A Threshold current
- 8K/W Thermal resistance
- -20°C to 90°C Operating temperature
- -40°C to 120°C Storage temperature
Documentation
Customer Reviews
PLPT9 5W Metal Can® Blue Laser Diode
COM-18605
Stock and Customer Discounts
$59.95 retail price.
Available Discounts
- $56.95 | 25+ units
- $53.96 | 100+ units
