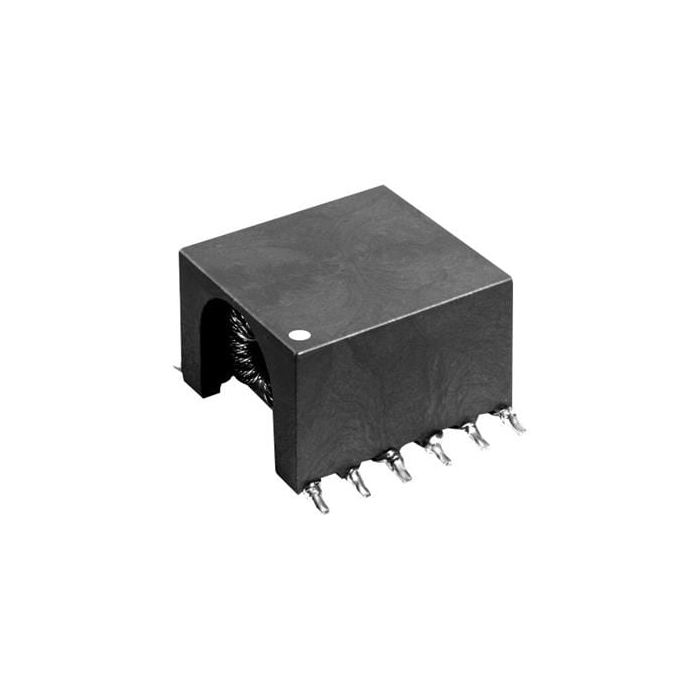

POE Signal Path Magnetic (Isolation Transformer)
COM-16947
POE Signal Path Magnetic (Isolation Transformer)
SKU: COM-16947
In stock
SKU
COM-16947
Coilcraft High Power POE (Power over Ethernet) Signal Path Magnetics meet the current requirement of Gigabit ethernet PoE Plus.
Product Overview
Coilcraft High Power POE (Power over Ethernet) Signal Path Magnetics meet the current requirement of Gigabit ethernet PoE Plus. The high power PoE magnetics feature an open circuit inductance of ≥350µH with a 38mA DC offset applied from 0°C to 70°C. The magnetics are capable to handle 3.8A of injected current.
Similar Items
Features & Specs
- Termination Style: SMD/SMT
- Inductance: 850 uH
- Isolation Voltage: 1.5 kV
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Length: 15.75mm
- Height: 10.8mm
- Core Material: Ferrite
- Current Rating: 1.9 A
- Maximum DC Current: 22.5 mA
- Maximum DC Resistance: 240 mOhms
- Shielding: Shielded
Documentation
Customer Reviews
POE Signal Path Magnetic (Isolation Transformer)
COM-16947
Stock and Customer Discounts
$10.95 retail price.
Available Discounts
- $10.40 | 25+ units
- $9.86 | 100+ units
