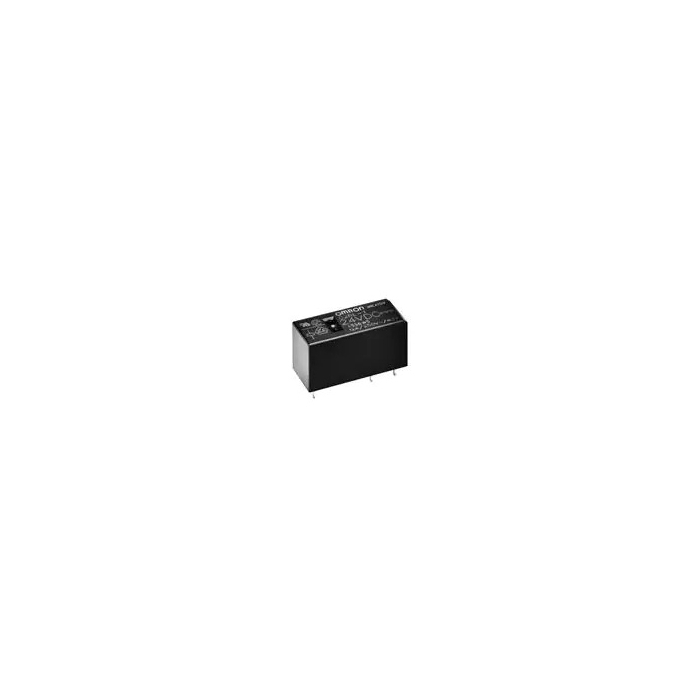

Power PCB Relay - 23A
COM-16861
Power PCB Relay - 23A
SKU: COM-16861
Out of stock
SKU
COM-16861
Product Overview
Omron Electronics G2RL-E2 Power PCB Relays are single-pole relays for high current load switching and high ambient temperature. Omron G2RL-E2 relays provide 23A switching and meet ambient operating temperature requirements of 105°C. These low-profile power relays offer reinforced insulation between coil and contact with 10kV impulse voltage. The series conforms to EN60335-1 of safety of household appliances. Applications include home appliances, microwaves, cooking tops, industrial uses, and HVAC systems.
Similar Items
Features & Specs
- Coil Voltage: 5 VDC
- Relay Contact Form: 1 Form A (SPST-NO)
- Contact Current Rating: 16 A
- Switching Voltage: 440 VAC, 300 VDC
- Coil Resistance: 62.5 Ohms
- Coil Current: 80 mA
- Maximum Switching Current: 23 A
- Power Consumption: 400 mW
- Meets ambient operating temperature requirements of 105°C
- Low profile, 16.7mm maximum height
- Reinforced insulation between coil and contact with 10kV impulse voltage
- Conforms to EN60335-1 of safety of household appliances
- 8mm / 8mm minimum clearance and creepage distances
- Class F (UL1446) coil insulation system
Documentation
Customer Reviews
Power PCB Relay - 23A
COM-16861
Stock and Customer Discounts
$5.95 retail price.
Available Discounts
- $5.65 | 25+ units
- $5.36 | 100+ units
