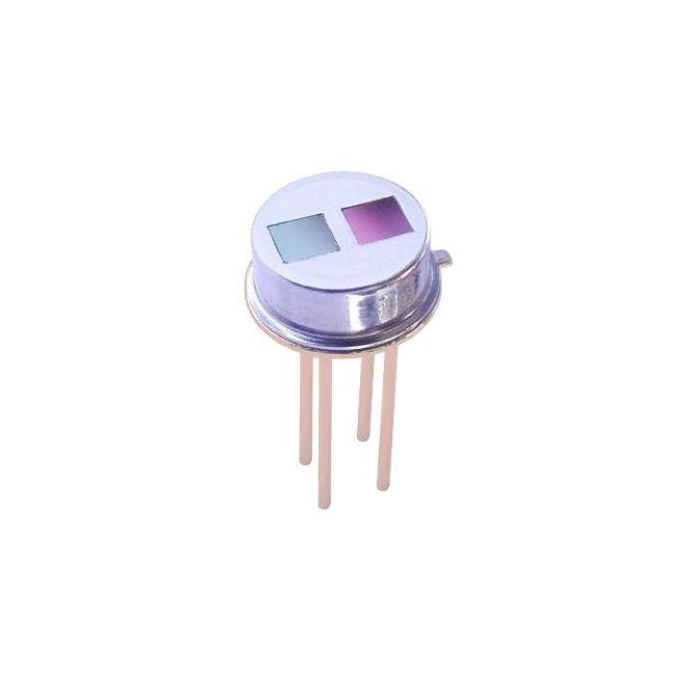

Pyroelectric Dual Channel Sensor - Protein (6.46m/130nm)
SEN-16969
Pyroelectric Dual Channel Sensor - Protein (6.46m/130nm)
SKU: SEN-16969
Out of stock
SKU
SEN-16969
Infrared Detectors Protein (6.46m/130nm) Protein Ref (6.70m/121nm).
Product Overview
Infrared Detectors Protein (6.46m/130nm) Protein Ref (6.70m/121nm).
Pyreos Thin Film Pyroelectric Dual Channel Sensors are ideal for gas detection and other substance concentration measurements. The IR sensors feature exceptionally high responsivity, low microphonics, and class-leading thermal and electrical stability. The high-performance current mode sensors feature a signal to noise of ~10,000 and offer a fast, stable response over a wide operating frequency range. The sensor elements are built into a low noise circuit that has an internal CMOS op-amp, with a 10GΩ feedback resistor outputting a voltage signal centered around half the supply rail.
Similar Items
Features & Specs
- Filter aperture: 2.6 mm square
- Max. Voltage: 8.0 V
- Min. Voltage: 2.7 V
- Element size: 1000 µm x 1000 µm
- Package: TO39
- Responsivity: 150,000 V/W
- Microphonics: S vib~2 μV/ g at 10Hz
- D*: 3.5 x 108 cm√Hz/ W
- Time Constant: ~12 ms
- Noise: 70 μV√Hz
- Operating Temperature: -40 to +85 °C
