This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Raspberry Pi AI Kit
KIT-25827

Raspberry Pi AI Kit

SKU: KIT-25827
In stock
SKU
KIT-25827

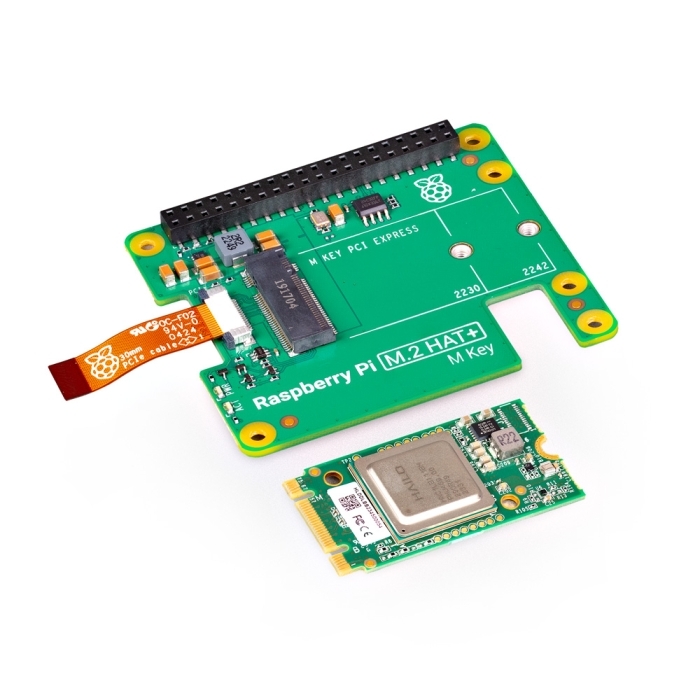

The Raspberry Pi AI Kit bundles an M.2-format Hailo 8L AI accelerator with the Raspberry Pi M.2 HAT+.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

The Raspberry Pi AI Kit bundles an M.2-format Hailo 8L AI accelerator with the Raspberry Pi M.2 HAT+ to offer you access to excellent inferencing performance on the Raspberry Pi 5. The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the M.2 2242 form factor, and comes pre-installed in the M.2 HAT+, to which it connects through an M key edge connector. The M.2 HAT+ communicates between the AI module’s M.2 interface and the Raspberry Pi 5’s PCIe 2.0 interface.

When the host Raspberry Pi 5 is running an up-to-date Raspberry Pi OS image, it automatically detects the Hailo module and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.

Please Be Aware: This is a M.2 HAT+ for devices that use the M.2 specification. The SparkFun MicroMod line uses a different pinout despite fitting in the same connector as M.2 devices. The MicroMod line does not work with this HAT.

Includes:

  • Hailo AI module containing a Neural Processing Unit (NPU)
  • Raspberry Pi M.2 HAT+, to connect the AI module to your Raspberry Pi 5
  • Thermal pad pre-fitted between the module and the M.2 HAT+
  • Mounting hardware kit
  • 16mm stacking GPIO header

Hookup Accessories

Features & Specs

  • Hailo 8L accelerator with up to 13 TOPS (Trillions of Operations Per Second) inferencing performance.
  • Conforms to the HAT+ specification.
  • Supplied pre-assembled on a Raspberry Pi M.2 HAT+ so ready out of the box to use with a Raspberry Pi 5.
  • Fully integrated into Raspberry Pi’s camera software stack.
  • Supplied with a 16mm stacking header and spacers/screws to enable the M.2 HAT+ to be fitted to a Raspberry Pi 5 with the Active Cooler in place.

Documentation

Customer Reviews

Raspberry Pi AI Kit
Raspberry Pi AI Kit KIT-25827

Stock and Customer Discounts

$70 retail price.

Looking for even larger quantities?

Get in touch for Volume Pricing
