Product Brief
Install GuideProduct Overview

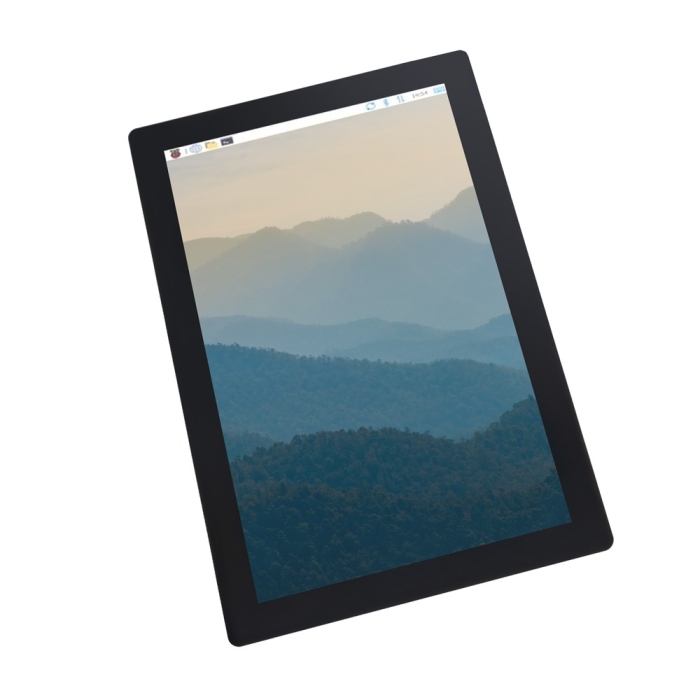

The Raspberry Pi Touch Display 2 is a 10.1-inch touchscreen display designed for interactive Raspberry Pi applications. Featuring a 1200 × 1920 pixel resolution and a capacitive touchscreen with support for up to ten simultaneous touch points, it provides a direct interface for controlling applications without a keyboard or mouse. The display connects through a DSI interface and is powered directly by the host Raspberry Pi, eliminating the need for a separate display power supply.
The Touch Display 2 is compatible with Raspberry Pi 5 and Raspberry Pi Compute Modules used with compatible IO boards or carrier boards. It is suitable for home automation dashboards, industrial control panels, kiosks, digital signage, robotics interfaces, and other embedded applications requiring a touchscreen interface. The display includes the necessary connection cables and mounting hardware, with touchscreen drivers and on-screen keyboard support provided by Raspberry Pi OS. Note that the 10.1-inch version requires a four-lane DSI connection and is not compatible with Raspberry Pi 4 or earlier models or the Raspberry Pi Zero series.
