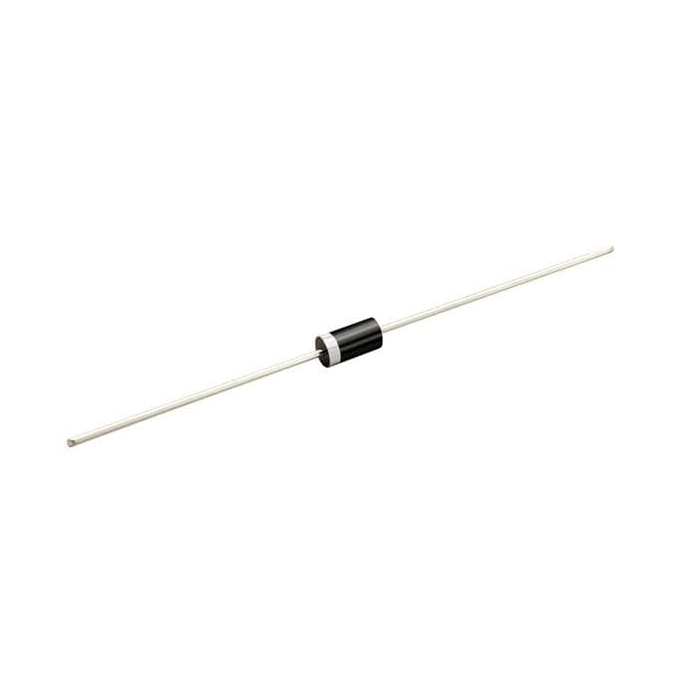

Rectron 1N5359B 5W Silicon Zener Diode
COM-18420
Rectron 1N5359B 5W Silicon Zener Diode
SKU: COM-18420
In stock
SKU
COM-18420
Rectron 1N5359B 5W Silicon Zener Diode features low cost, low leakage, low forward voltage drop, and high current capability.
Product Overview
Rectron 1N5359B 5W Silicon Zener Diode features low cost, low leakage, low forward voltage drop, and high current capability. This diode operates from 22.8V to 25.2V Zener voltage (VZ) range, 50mA Zener current (IZ), and 5% voltage tolerance. The 1N5359B Zener diode is available in a Through-hole mounting style package and molded plastic case.
Features & Specs
- 22.8V to 25.2V Zener voltage (VZ) range
- 50mA Zener current (IZ)
- 5W power rating
- 3.5Ω Zener impedance at IZ (Ohms)
- 100Ω Zener impedance at IZK (Ohms)
- 1mA Zener current (IZK)
- 18.2V reverse voltage (VR)
- 0.5µA reverse current (IR)
- 5% voltage tolerance
Documentation
Customer Reviews
Rectron 1N5359B 5W Silicon Zener Diode
COM-18420
Stock and Customer Discounts
$0.95 retail price.
Available Discounts
- $0.90 | 25+ units
- $0.86 | 100+ units
