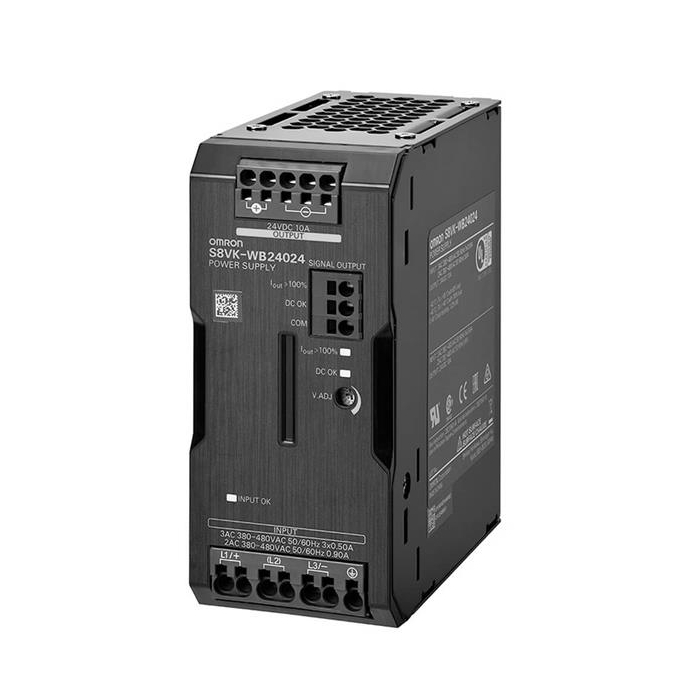

S8VK-WB Switch Mode Power Supply - 3-Phase, 480VAC, 24V, 240W
PRT-18197
S8VK-WB Switch Mode Power Supply - 3-Phase, 480VAC, 24V, 240W
SKU: PRT-18197
Out of stock
SKU
PRT-18197
Omron Industrial Automation S8VK-WB Switch Mode Power Supplies are compact, three-phase power supplies with a 380V to 480V input voltage range.
Product Overview
Omron Industrial Automation S8VK-WB Switch Mode Power Supplies are compact, three-phase power supplies with a 380V to 480V input voltage range. Omron S8VK-WB Power Supplies offer 240W, 480W, and 960W power rating options and 24VDC or 48VDC output voltage ratings. Push-In Plus terminals reduce wiring work. The series operates at an ambient temperature of -40°C to +70°C and enables side-by-side mounting. S8VK-WB is certified for 3000m altitude and complies with the SEMI F47-0706 standard.
Similar Items
Features & Specs
- Output Power: 240 W
- Input Voltage: 320 VAC to 576 VAC, 450 VDC to 810 VDC
- Number of Outputs: 1 Output
- Output Voltage-Channel 1: 24 VDC
- Output Current-Channel 1: 10 A
- Length: 111.4 mm
- Width: 55 mm
- Height: 125.2 mm
- Series: S8VK-WB
- Dimensions: 111.4 mm x 55 mm x 125.2 mm
- Open Frame/Enclosed: Enclosed
- Brand: Omron Automation and Safety
- Mounting Style: DIN Rail
- IP Rating: IP20
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: - 40 C
- Model #: S8VK-WB24024
