Sensirion SEK-SVM4x Air Quality Sensor Evaluation Kit
KIT-19359
Sensirion SEK-SVM4x Air Quality Sensor Evaluation Kit
SKU: KIT-19359
Out of stock
SKU
KIT-19359
The SEK-SVM4x provides an onboard microcontroller for signal processing and an I2C and UART interface with digital output signals.
Product Overview

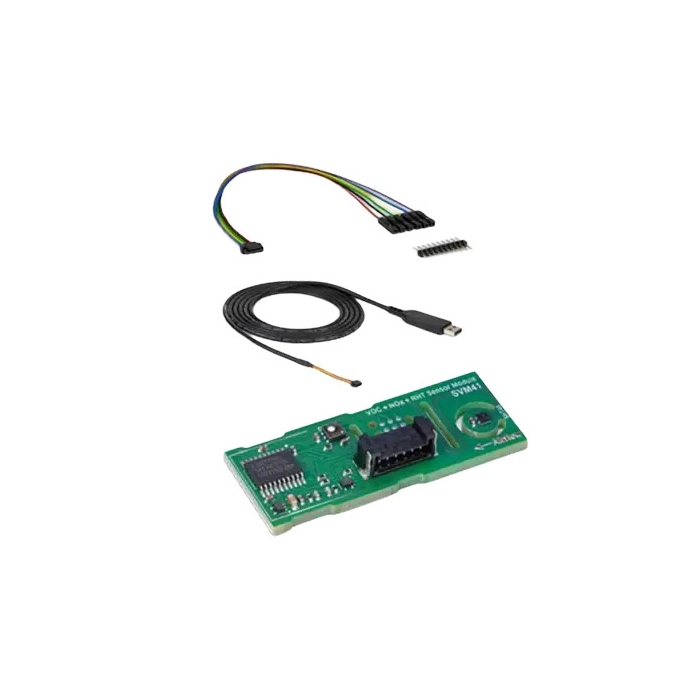

Sensirion SEK-SVM4x Air Quality Sensor Evaluation Kit is a plug-and-play development tool for fast evaluation and prototyping of the SGP40, SGP41, and SHT4x sensors for VOC and NOx measurements. The SEK-SVM4x provides an onboard microcontroller for signal processing and an I2C and UART interface with digital output signals. Other features include a 3.0V to 5.5V supply voltage range, a 3.0mA maximum idle current, and a -20°C to +55°C operating temperature range. The evaluation kit consists of a sensor module equipped with an SGP41 and SHT40 sensor, a USB-UART cable, and a jumper wire cable set.
Includes:
- Sensor Module equipped with an SGP41 and SHT40 sensor
- USB-UART cable
- Jumper wire cable set.
Similar Items
Features & Specs
- Electrical:
- 3.0V to 5.5V supply voltage range
- 3.0mA maximum idle current, 2.0mA typical
- 7.5mA maximum average supply current during measurement, 5.0mA typical
- Timing:
- 100ms maximum powerup time, 25ms typical
- 100kHz maximum I2C clock frequency
- 115,200-bits typical UART baud rating
- 0.5s to 60s recommended read-out interval range
- Tunable parameters:
- 1 to 250 average index range
- 1-hour to 1000-hours learning time offset and gain
- 0 to 3000 minutes maximum gating duration
- 10 to 5000 initial standard deviation
- 1 to 1000 gain factor range
- Temperature ranges:
- -20°C to +55°C operating
- -40°C to +70°C short-term storage
- Relative humidity:
- 0 to 90% operating, non-condensing
- 0 to 80% storage, non-condensing
Documentation
Customer Reviews
Sensirion SEK-SVM4x Air Quality Sensor Evaluation Kit
KIT-19359
Stock and Customer Discounts
$94.95 retail price.
Available Discounts
- $90.20 | 25+ units
- $85.46 | 100+ units
