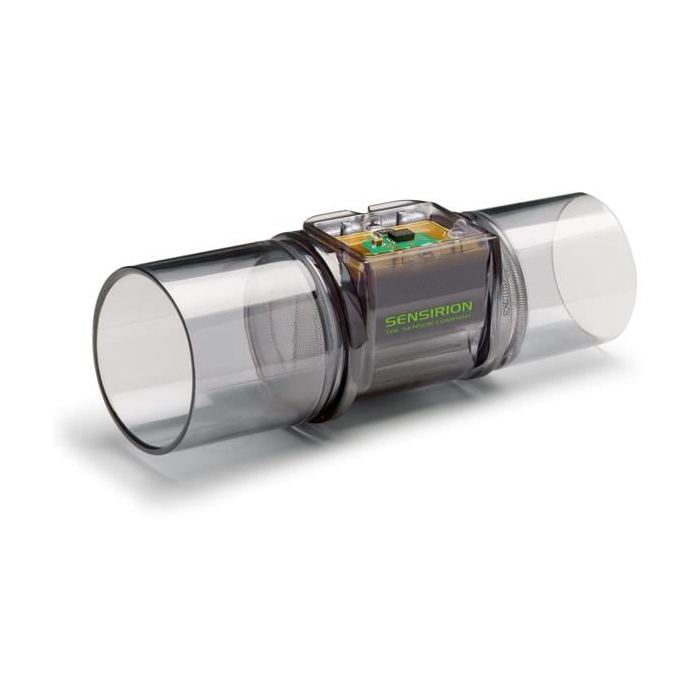

Sensirion SFM3200 Digital Flow Meter
Sensirion SFM3200 Digital Flow Meter is designed for high-volume applications to accurately measure the flow rate of air, oxygen, and non-aggressive gases.
Product Overview
Sensirion SFM3200 Digital Flow Meters are designed for high-volume applications to accurately measure the flow rate of air, oxygen, and non-aggressive gases. These meters offer a flow range of up to 250 standard liters per minute (SLM) and a bidirectional measurement mode. The SFM3200 flow meters feature a fifth-generation silicon sensor chip that contains an amplifier, A/D converter, EEPROM memory, digital signal processing circuitry, and interface. Sensirion's atented CMOSens® technology improves the performance of the sensor by combining sensor elements, signal processing, and digital calibration on a single microchip. Sensirion SFM3200 Digital Flow Meters are ideal for use in respiratory measurements, inspiratory flow measurements, ventilation, anesthesia, and drug delivery applications.
Features & Specs
- Range: - 100 slm to 250 slm
- Accuracy: 7 %
- Operation Mode: Bidirectional
- Operating Supply Voltage: 5 V
- Housing Material: Plastic
- Brand: Sensirion
- Maximum Operating Temperature: + 50 C
- Minimum Operating Temperature: - 10 C
- Output Type: Digital
- Mfg #: SFM3200-AW
- Supply Voltage - Max: 5.25 V
- Supply Voltage - Min: 4.75 V
