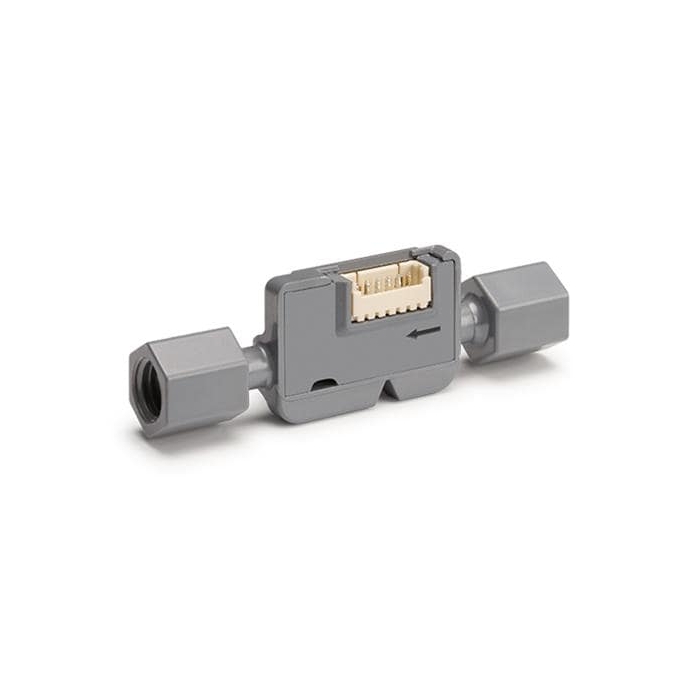

Sensirion SLF3S-0600F Liquid Flow Sensor
Sensirion SLF3S-0600F Liquid Flow Sensor enables precise and reliable measurements of dynamic liquid flow rates up to 2000µl/min bi-directionally.
Product Overview
Sensirion SLF3S-0600F Liquid Flow Sensor enables precise and reliable measurements of dynamic liquid flow rates up to 2000µl/min bi-directionally. Sensirion SLF3S-0600F sensor features a digital interface (I2C) via a 6-pin standard electrical connector. SLF3S-0600F builds on the latest generation CMOSens® sensor chip that is at the heart of Sensirion's flow sensing platform and achieves outstanding performance. CMOSens technology combines the sensor element, signal processing and digital calibration on a small CMOS chip. The CMOS technology is ideal for demanding and cost-sensitive OEM applications.
Features & Specs
- Low flow sensing up to ±2000µl/min
- Calibrated for H2O and IPA
- Linearized, temperature-compensated, and fully calibrated digital output signal (I2C)
- Bidirectional measurement and real-time failure detection
- 200:1 or better turndown ratio
- Compact and lightweight form factor
- Straight, unobstructed flow channel without moving parts
- Response time below 20ms
- Accuracy: 5%
- Operating Supply Voltage: 3.5V
- Port Size: UNF 1/4 - 28
- Housing Material: Polyphenylene Sulfide (PPS)
- Connection Method: 6-pin Molex
- Maximum Operating Temperature: +50C
- Minimum Operating Temperature: +5C
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $132.00 | 25+ units
- $125.06 | 100+ units
