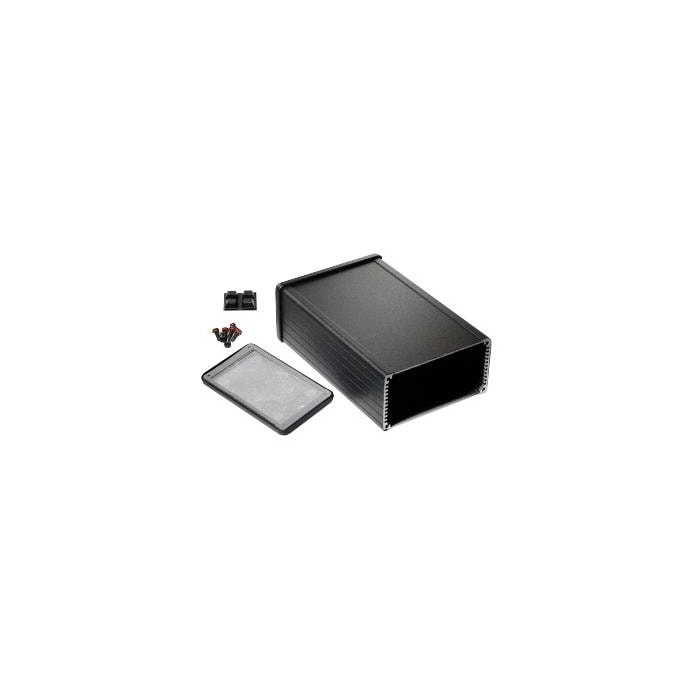

Shielded Extruded Aluminum Flanged Enclosure - 6.3x4.09x2.15 Black
Hammond Manufacturing 1457-EMI Shielded Extruded Aluminum Enclosures feature a rugged aluminum body with two endplate EMI/RFI conductive gaskets.
Product Overview
Hammond Manufacturing 1457-EMI Shielded Extruded Aluminum Enclosures feature a rugged aluminum body with two endplate EMI/RFI conductive gaskets. These heavy-duty enclosures are constructed from one piece of extruded aluminum with a minimum thickness of 0.06" (1.5mm) and provide a recessed area for labels or membrane keypad. The aluminum body paint finish comes in a clear anodized or black powder. The diecast aluminum end panels have durable, black satin powder paint. The series offers a choice of end panels without a flange or with a flange (for shelf or wall mounting). Hammond 1457-EMI Shielded Extruded Aluminum Enclosures are designed to meet IP54 ratings and ideal to house PCBs or for equipment interfacing.
Features & Specs
- Type: EMI/ RFI Shielded
- Material: Aluminum
- Color: Black
- Cover Color: Black
- Length: 6.3 in
- Width: 4.09 in
- Height: 6.3 in
- IP Rating: IP54
- Series: 1457-EMI
- Depth: 2.15 in
- Height - mm: 54.61
- Length - mm: 160.02
- Width - mm: 103.886
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $55.05 | 25+ units
- $52.16 | 100+ units
