Signal Conditioning LTCC High Pass Filter, 10000 - 19500 MHz
COM-20098
Signal Conditioning LTCC High Pass Filter, 10000 - 19500 MHz
SKU: COM-20098
Out of stock
SKU
COM-20098

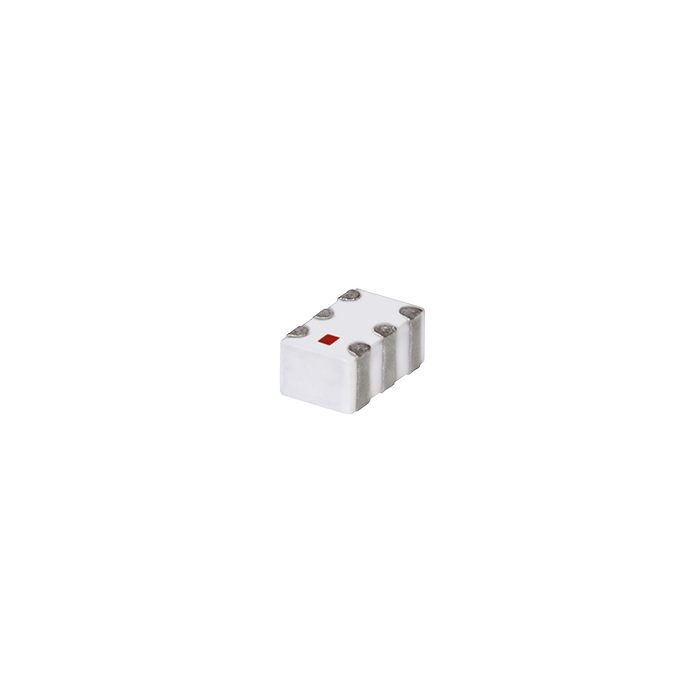

These filters are housed in a small 0603 ceramic form factor with wraparound terminations, making them ideal for dense PCB layouts.
Product Overview
Mini-Circuits HFCW Ceramic High Pass Filters with passband offer a 5500MHz to 21000MHz frequency range, 50Ω impedance, and 34dB to 45dB typical rejection. These filters are housed in a small 0603 ceramic form factor with wraparound terminations, making them ideal for dense PCB layouts. The strategically constructed layout provides good insertion loss over a wide band. Typical applications for Mini-Circuits HFCW Ceramic High Pass Filters include test and measurement, military, telecommunications, and broadband wireless systems.
Similar Items
Features & Specs
- Frequency Range: 10 GHz to 19.5 GHz
- Impedance: 50 Ohms
- Termination Style: SMD/SMT
- Package / Case: JC0603C
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 125 C
- Series: HFCW
- Brand: Mini-Circuits
- Insertion Loss: 1.7 dB
- Mounting: SMD/SMT
Documentation
Customer Reviews
Signal Conditioning LTCC High Pass Filter, 10000 - 19500 MHz
COM-20098
Stock and Customer Discounts
$10.95 retail price.
Available Discounts
- $10.40 | 25+ units
- $9.86 | 100+ units
