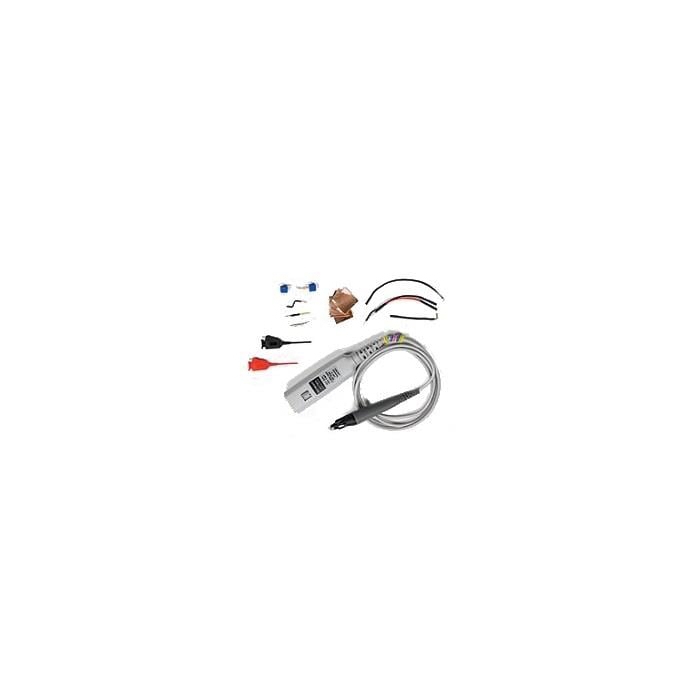

Single-Ended Active Test Probe - 2 GHz Single-Ended
The probes are powered directly by the InfiniiVision and Infiniium Autoprobe interface, eliminating the need for an additional power supply.
Product Overview
Keysight Technologies Single-Ended Active Test Probes are 1GHz to 2GHz probes with AutoProbe interface (compatible with Keysight's InfiniiVision and Infiniium family of oscilloscopes). These cost-effective probes integrate many of the characteristics needed for general-purpose, high-speed probing–especially in digital system design, component design/characterization, and educational research applications. Its 1MΩ input resistance and extremely low input capacitance (1pF) provide ultra-low loading of the DUT. This, accompanied by superior signal fidelity, makes these probes useful for digital logic voltages.
The N2795A / 96A / 97A devices are equipped with a white LED headlight to illuminate the circuit under test. The probes are powered directly by the InfiniiVision and Infiniium Autoprobe interface, eliminating the need for an additional power supply.
Features & Specs
- 2GHz probe bandwidth
- 175ps rise time
- System bandwidth
- 1GHz with Keysight's 1GHz InfiniiVision/Infiniium
- 1.5GHz with Keysight's 1.5GHz InfiniiVision 4000X, 6000X
- ±12V offset range
- 10:1 ±0.5% attenuation ratio
- -8V to +8V (DC or peak AC) input dynamic range
- -20V to +20V non-destructive input voltage
- ±1mV DC offset error
- 0.5% low-frequency accuracy at 70Hz, 1Vpp
- 1MΩ input resistance
- 1pF input capacitance
- 50Ω output impedance
- Model #: N2796A
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $3,282.20 | 25+ units
- $3,109.46 | 100+ units
