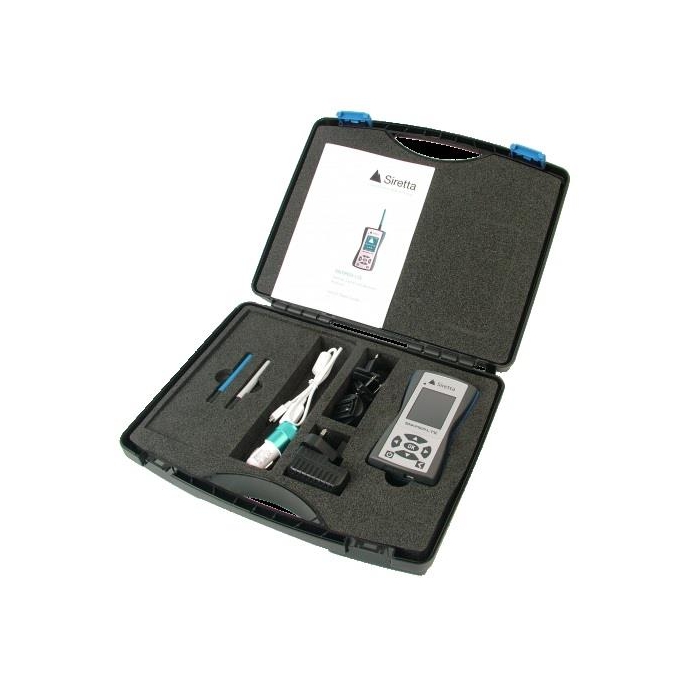

Siretta SNYPER-LTE+ (USA) Network Signal Analyzer
CEL-19547
Siretta SNYPER-LTE+ (USA) Network Signal Analyzer
SKU: CEL-19547
In stock
SKU
CEL-19547
This analyzer performs three types of surveys: 4G/LTE only, 3G/UMTS only, and a combined 4G and 3G survey.
Product Overview
Siretta SNYPER-LTE+ (USA) Network Signal Analyzer is a high-performance, multi-language analyzer dedicated to surveying the 4G / LTE and 3G / UMTS North American networks. This analyzer performs three types of surveys: 4G/LTE only, 3G/UMTS only, and a combined 4G and 3G survey. The combined 4G and 3G survey provides multiple results from each network operator in a single survey. Siretta SNYPER-LTE+ analyzer can establish the most suitable operator for the application, evaluate the user's preferred MNO's performance, and determine optimum antenna placement.
Similar Items
Features & Specs
- Interfaces
- 1 x USB 2.0FS(12MBits/s) for PC interface and for battery charging
- 1 x SMA female cellular antenna connector
- Red LED charging indicator
- Display
- 2.4" diagonal QVGA 240 x 320 RGB TFT with LED backlight
- 80° viewing angle
- 500md/m2 brightness
- Environmental
- Dimensions
- 141mm x 76mm x 36mm (SNYPER)
- 78mm x 11mm (antenna)
- Weight
- -10°C to +50°C operating temperature range
- Lithium-ion 3.7V, 2000mAh battery
- 2s warm-up time
- 200g without antenna
- 207g with supplied antenna
- Power Supply
- 100V to 240V 50/60Hz input ratings
- 5VDC 2000mA charger O/P
- Reporting
- HTML
- Graphical display ordered by signal strength
- Listing of advanced cellular parameters
- Complete summary breakdown for all recorded cells
- Recorded survey date and time
- Access to Siretta's mapping portal, CloudSURVEY (registration required)
- CSV
- Complete survey breakdown for each recorded cell
- Listing of advanced cellular parameters
Documentation
Customer Reviews
Siretta SNYPER-LTE+ (USA) Network Signal Analyzer
CEL-19547
Stock and Customer Discounts
$849.95 retail price.
Available Discounts
- $807.45 | 25+ units
- $764.96 | 100+ units
