SMD Addressable RGB LED - IN-PI554FCH 5050 (Cut Tape)
COM-26982

SMD Addressable RGB LED - IN-PI554FCH 5050 (Cut Tape)

SKU: COM-26982
$0.75
In stock
SKU
COM-26982
In stock
Stock/Discounts

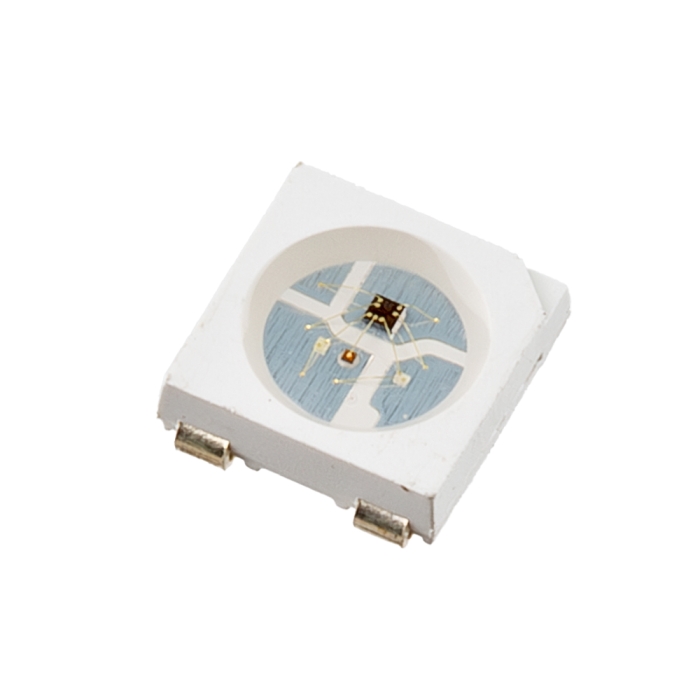

The IN-PI554FCH is a 5050-sized SMD LED with an integrated high quality constant current IC and RGB LED chip.

Product Overview

The IN-PI554FCH is a 5050-sized SMD LED with an integrated high quality constant current IC and RGB LED chip.

Since these require a bit of SMD soldering skills to get them attached to your board. it is recommended to have good SMD soldering skills before incorporating the IN-PI554FCH.

Sold as individual units. These come as cut tape.

Features & Specs

  • 4-pin design
  • Red:
  • Wavelength: 620-625nm
  • Light Intensity: 500-1000mcd
  • Working Current: 12mA
  • Working Voltage: 1.8-2.2V
  • Green:
  • Wavelength: 520-525nm
  • Light Intensity: 1000-1700mcd
  • Working Current: 12mA
  • Working Voltage: 2.8-3.2V
  • Blue:
  • Wavelength: 465-470nm
  • Light Intensity: 500-1000mcd
  • Working Current: 12mA
  • Working Voltage: 2.8-3.2V

Documentation

Customer Reviews

SMD Addressable RGB LED - IN-PI554FCH 5050 (Cut Tape)
SMD Addressable RGB LED - IN-PI554FCH 5050 (Cut Tape)
$0.75
COM-26982

Stock and Customer Discounts

$0.75 retail price.

Available Discounts

  • $0.71 | 25+ units
  • $0.68 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
