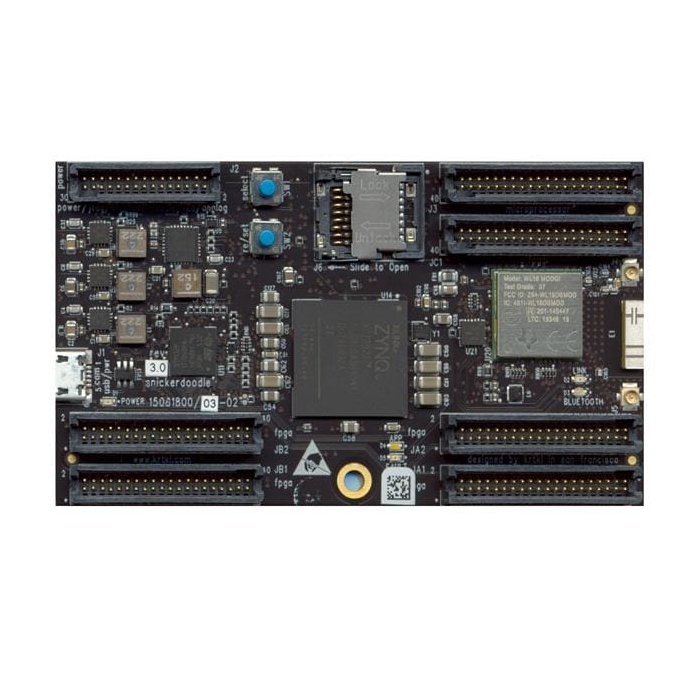

Snickerdoodle One
Snickerdoodle One System-on-Module is a business-card-sized, Zynq-based computer module with Wi-Fi®, 512MB RAM, 16MB flash, 155 I/O, and an SD card cage.
Product Overview
krtkl Snickerdoodle One System-on-Module (SoM) is a business-card-sized, Zynq-based computer module with Wi-Fi®, 512MB RAM, 16MB flash, 155 I/O, and an SD card cage. Built on a Xilinx® Zynq™-7010 system-on-chip (SoC) and a Texas Instruments WiLink™ 8 wireless module, Snickerdoodle is designed to make high-performance, power-efficient computing and artificial intelligence (AI) at the network edge practical, affordable, and scalable.
The 2.0" x 3.5" (50.8mm x 88.9mm) board offers a Zynq SoC with two 667MHz Arm® Cortex®-A9 cores and a 430K gate Xilinx Artix®-7 field-programmable gate array (FPGA), 802.11a/b/g/n Wi-Fi, 512MByte of LPDDR2 RAM, 100 reconfigurable FPGA inputs/outputs (I/O), and 55 additional I/O pins. Out of the box, Snickerdoodle supports Ubuntu Linux, Python, PYNQ, C/C++, and bare metal.
Features & Specs
- Chipset: Xilinx Zynq-7010
- CPU: 32-bit Dual-Core ARM Cortex-A9 with 640kB Cache and 2x 128-bit NEON Coprocessors
- Performance: 3335 DMIPS/2.6 GFLOPS at 667MHz
- Flash: 16MB XIP NOR + up to 200GB SDIO NAND via Captive MicroSD Card Cage
- DRAM/bandwidth: 512MB/25.6Gbps
- SRAM/bandwidth: 256kB/28.4Gbps
- FPGA: 430K gates/17600 LUT-6
- 32-bit performance: 143,150 MIPS at 350MHz
- Distributed RAM: 270kB/3354Gbps
- DSP performance: 74 GMACs/31.8 GFLOPS at 461MHz
- Total user GPIO: 155
- FPGA I/O performance: 16x ADC/100x GPIO/46.2Gbps
- Fixed GPIO: 33x GPIO, 4x I2S Audio, 14x I2C, 1x ADC, 2x DAC
- Wi-Fi: 150Mbps SISO 2.4GHz 802.11n
- Antenna: Dual-band antenna, Switched U.FL ports
- Serial interfaces: 2x Gigabit Ethernet, 2x CAN, 2x I2C, SPI, UART, USB 2.0 High-Speed, MicroUSB Console/JTAG
- Analog interfaces: 2x 1MSPS 12-bit ADCs w/16 Channel Multiplexer, 2x 1MSPS 12-bit DACs
- Other peripherals: 5x LEDs, 2x Pushbuttons, Secure Cryptographic Key/Certificate Storage
- Software support: Ubuntu Linux, Python, C/C++, Java, ROS, FreeRTOS
- Power: 5V via microUSB or 3.7V to 17V via power pins
- Dimensions: 2.0" x 3.5" (50.8mm x 88.9mm)
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $117.75 | 25+ units
- $111.56 | 100+ units
