Assembly GuideProduct Overview

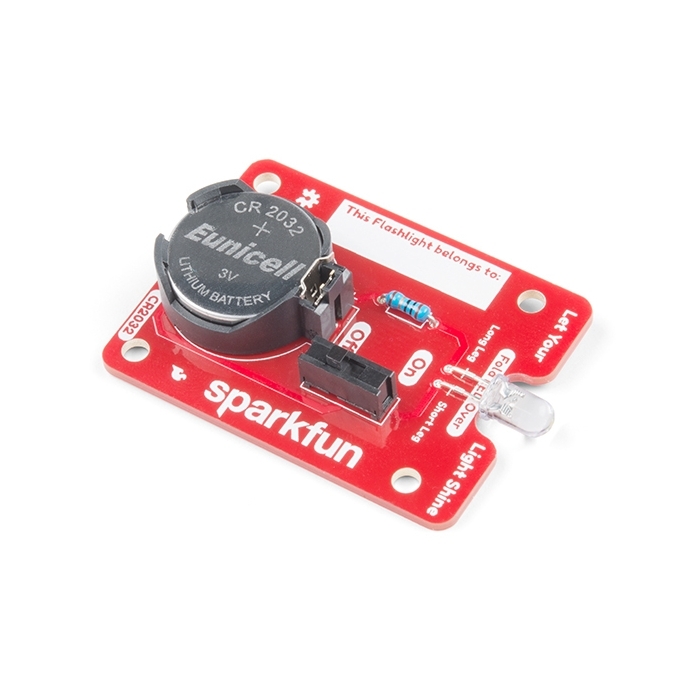

Start learning electronics with a fun, hands-on soldering kit! The SparkFun Basic Flashlight Soldering Kit is a beginner-friendly project designed to teach the fundamentals of through-hole soldering and basic circuit design. By soldering just four unique parts onto a custom printed circuit board, you will build a fully functional flashlight to illuminate dark spaces and keep the monsters at bay.
Everything You Need to Start
To ensure your first electronics experience is as straightforward as possible, this kit includes:
- Custom PCB: Features clear outlines on the front for component placement and a helpful schematic on the back.
- Bright LED: The main light source for your completed flashlight project.
- Power Components: Includes a CR2032 coin cell battery and a matching holder to power your board.
- Control Hardware: A simple switch to turn the light on and off, plus a resistor to protect the circuit.
What to Expect During Assembly
For a true beginner with no prior experience, we estimate the assembly will take 10-15 minutes. Once assembled, the back of the board serves as an educational tool, showing exactly how the battery, switch, resistor, and LED interact to create a working circuit. It's an excellent weekend project or classroom activity that turns learning a technical skill into a rewarding experience.
To complete this build, you only need to provide the bare minimum tools: a soldering iron, solder, and a pair of cutters.
