SparkFun HSTX PTH Breakout
BOB-28467
SparkFun HSTX PTH Breakout
SKU: BOB-28467
$2.50
In stock
SKU
BOB-28467
Simplify HSTX connections! Break out those tricky 22-pin connectors for easy prototyping with this essential board.
Helpful Documentation
Schematic
GitHub Hardware RepositoryProduct Overview

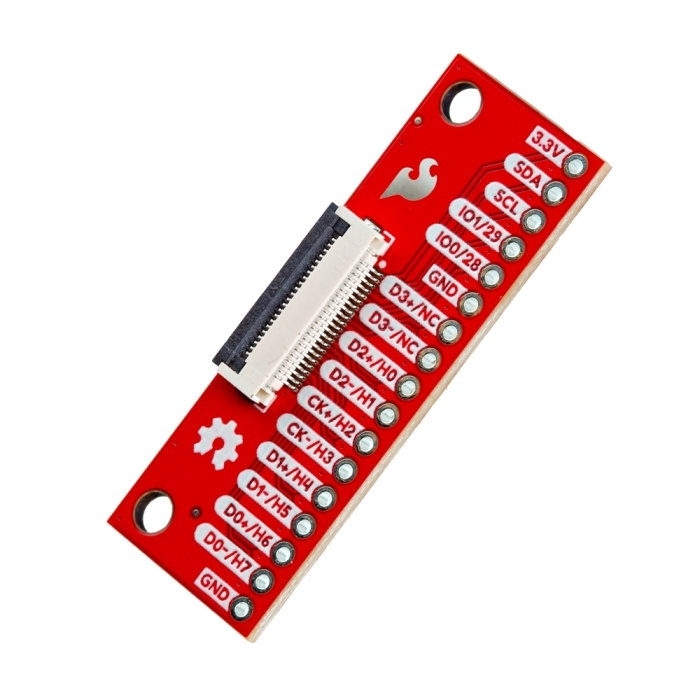

The SparkFun HSTX PTH Breakout is a simple board designed to work with the HSTX connector on the RP2350 IoT RedBoard and the camera and display connectors on a Raspberry Pi 5. It breaks out all 22 pins used on these connectors to a standard 0.1in.-spaced plated through-hole header. These 22-pin connectors interface with a matching flexible cable and normally connect directly to other peripherals (cameras, displays, etc.).
This board, intended for prototyping with the RP2350 IoT RedBoard, breaks out all four differential pairs on the connector along with I2C signals (data/clock) and power (3.3V & Ground).
Similar Items
Hookup Accessories
Features & Specs
- 1x 22-pin Flex Cable Connector
- 0.1in.-spaced Plated Through-Hole header
