SparkFun HSTX to DVI Breakout
BOB-28468
SparkFun HSTX to DVI Breakout
SKU: BOB-28468
$4.95
In stock
SKU
BOB-28468
A simple HSTX to DVI conversion breakout that can connect your boards to DVI displays effortlessly.
Helpful Documentation
Schematic
GitHub Hardware RepositoryProduct Overview

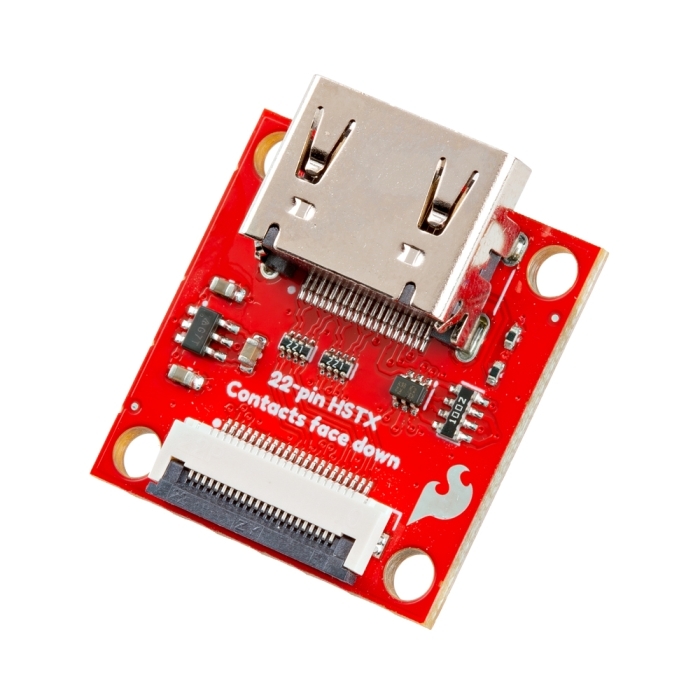

The SparkFun HSTX to DVI Breakout takes the 22-pin interface found on the HSTX connector on the RP2350 IoT RedBoard and the display connector on a Raspberry Pi 5 and translates it to an HDMI connector for DVI output.
The board includes a 22-pin flex cable connector and HDMI connector, along with the required components to level shift and boost the voltage for compatibility with DVI signal requirements.
Similar Items
Hookup Accessories
Features & Specs
- 1x 22-pin Flex Cable Connector
- 1x HDMI Connector
Documentation
Customer Reviews
SparkFun HSTX to DVI Breakout
$4.95
BOB-28468
Stock and Customer Discounts
$4.95 retail price.
Available Discounts
- $4.70 | 10+ units
- $4.46 | 25+ units
- $4.21 | 100+ units
