With this USB-C breakout, you will be able to incorporate a vertical USB-C connector into your projects without needing to solder each tiny SMD pad. The vertical orientation of the USB-C connector also makes it convenient for panel mounts in projects.

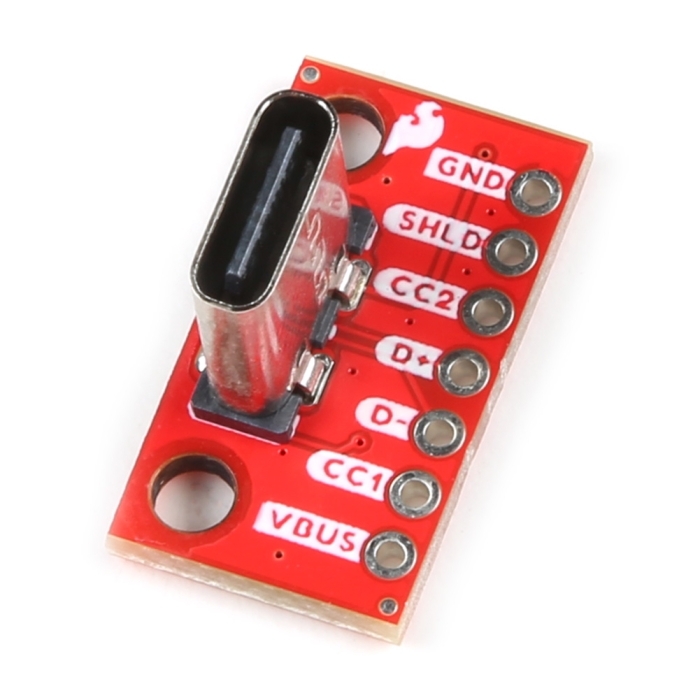

The SparkFun USB-C Breakout supplies up to three times the power as our previous USB breakouts (i.e., Type-A, micro-B, and mini-B). Also, it solves the universally frustrating dilemma of plugging a USB cable in correctly because it's reversible! The board breaks out the USB-C connector's VBUS, GND, CC1, CC2, D+, D-, and SHLD pins into a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.
Note: This part cannot be utilized as a direct replacement for the USB-C Breakout; it features an additional pin, so the pin layout will not match up.
