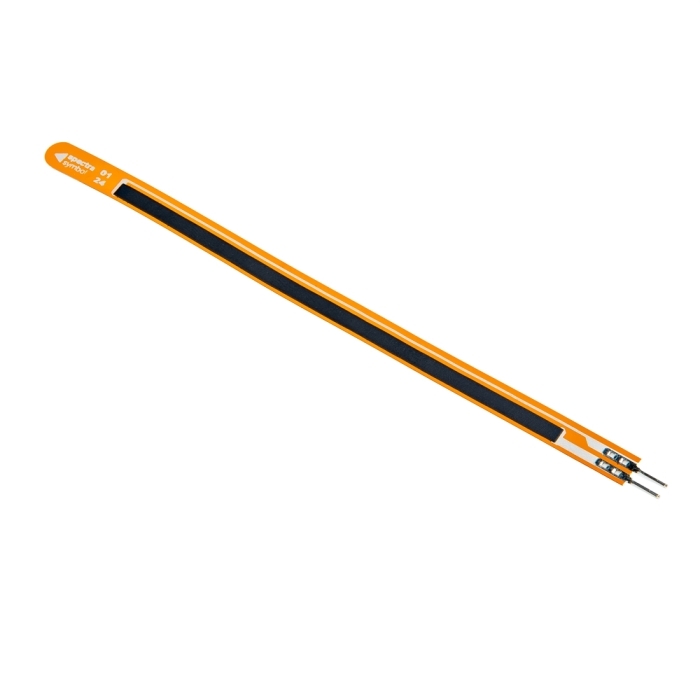

SpectraFlex™ Flex Sensor - 95mm (Male Pins)
Helpful Documentation
DatasheetProduct Overview
Introducing the SpectraFlex™ Flex Sensor. Enjoy unmatched accuracy with minimal drift, making it a reliable choice for research, industrial operations, or personal projects. This is our lightest sensor to date, a perfect balance of convenience and top-notch performance due to its reduced weight and thickness, which allows maximum adaptability across many applications. Not only is it feather-light, but it’s also incredibly durable, demonstrating a lifespan of over 2 million bend cycles at 180 degrees over an 8mm radius, effectively outlasting and outperforming its predecessors by more than double. The revolutionary low drift technology it employs ensures near-zero drift, making each reading precise. SpectraFlex stands out with its swift signal responsiveness.
Features & Specs
- Flat Resistance (Ohms): 18,000 ±20%
- Resistance Change Multiplier: defined as a function of bend radius (8mm) and angular deflection (180°): >2x
- Repeatability (under controlled conditions): ±2%
- Operating Temperature: -35°C to +80°C
- -Life Cycle: >2 million cycles with a bend angle of 180° over an 8mm (0.315”) radius
- Recommended Bend Radius: 2.5mm to 8mm
