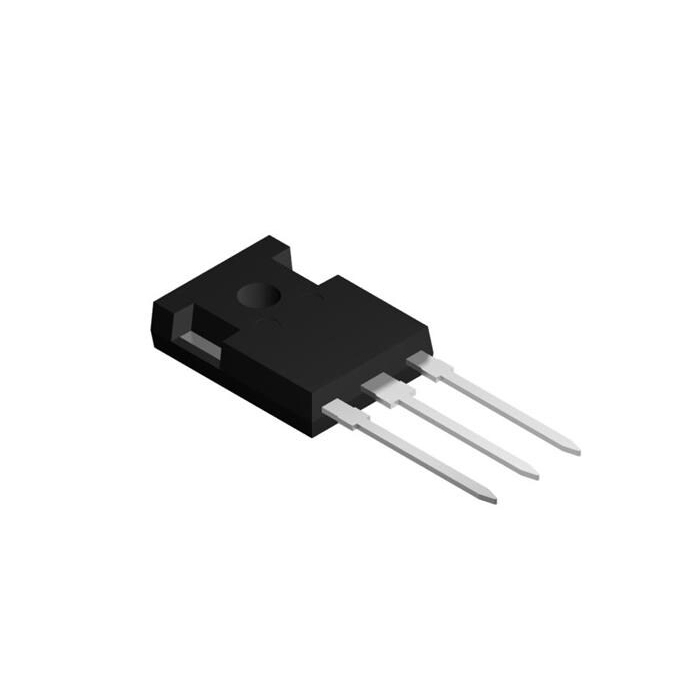

STMicroelectronics STGWA20IH65DF 650V 20A Soft-Switching IGBT (Insulated Gate Bipolar Transistor).
Product Overview
STMicroelectronics STGWA20IH65DF 650V 20A Soft-Switching IGBT (Insulated Gate Bipolar Transistor) features a proprietary trench gate field-stop structure and is optimized both in conduction and switching losses for soft commutation. A freewheeling diode with a low drop forward voltage is included. The result is a device specifically designed to maximize efficiency for resonant and soft-switching applications.
The STMicroelectronics STGWA20IH65DF IGBT is provided in a TO-247-3 long lead package.
Features & Specs
- Designed for soft-commutation
- 650V collector-emitter voltage
- 20A continuous collector current at TC = 100°C
- VCE(sat) = 1.55V (typical) at IC = 20A
- Minimized tail current
- Tight parameter distribution
- Low thermal resistance
- Low drop voltage freewheeling co-packaged diode
- Positive VCE(sat) temperature coefficient
- 159W total power dissipation at TC = 25°C
- -55°C to +175°C operating junction temperature range
- TO-247-3 long lead package
