DatasheetProduct Overview
These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work.

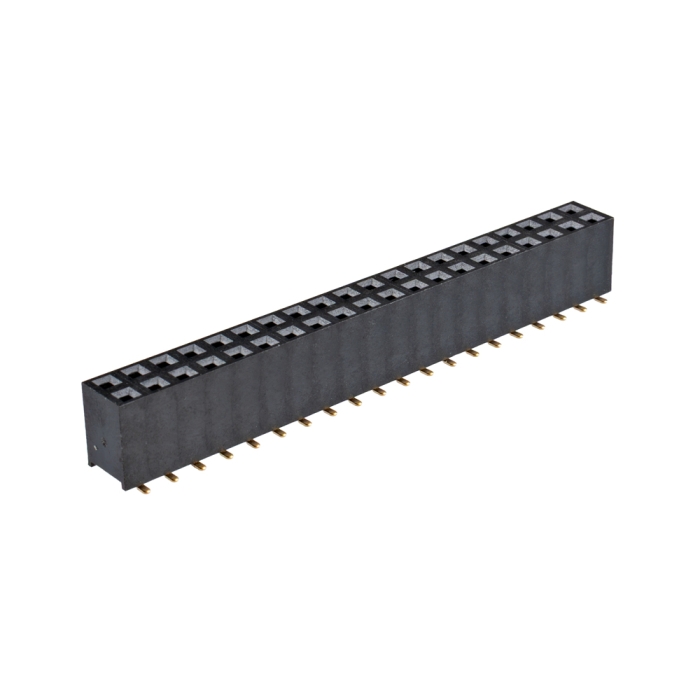

This is a 2x20-Pin female header.
Straight Header - Female (SMD, 0.1in., 2x20-Pin)
PRT-16809
Straight Header - Female (SMD, 0.1in., 2x20-Pin)
SKU: PRT-16809
These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work.
$4.95
In stock
SKU
PRT-16809
Helpful Documentation
Features & Specs
- Contact Type: Female Socket
- Number of Positions: 40
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Insulation Color: Black
- Insulation Height: 0.299" (7.60mm)
- Operating Temperature: -40°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Current Rating (Amps): 3A
- Voltage Rating: 250V
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Contact Shape: Square
- Contact Material: Phosphor Bronze
- Mfg Part #: NPTC202KFMS-RC
Documentation
Customer Reviews
Straight Header - Female (SMD, 0.1in., 2x20-Pin)
$4.95
PRT-16809
$4.95 retail price.
Available Discounts
- $4.70 | 25+ units
- $4.46 | 100+ units
