This is a simple 2x20-pin male SMD right angle header.
The pins on this header have been spaced at the 0.1" standard.

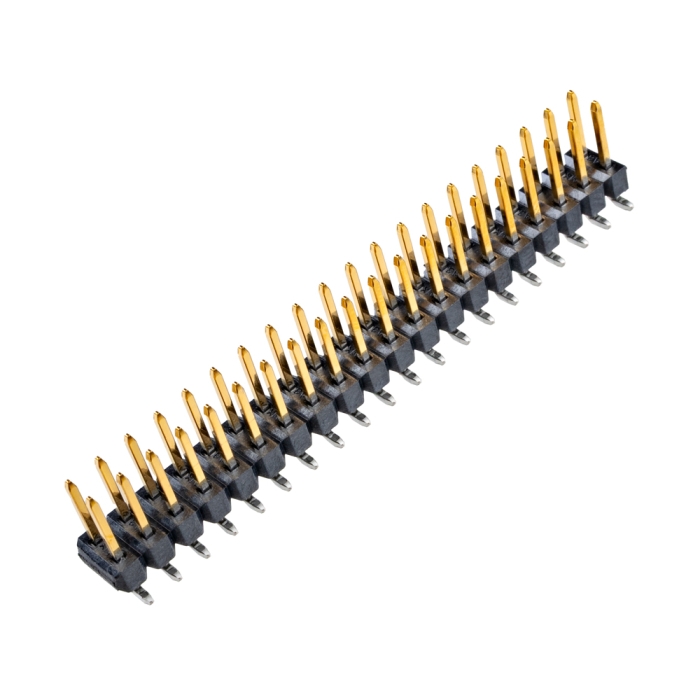

Straight Header - Male (SMD, 0.1in., 2x20-Pin)
PRT-32165
Straight Header - Male (SMD, 0.1in., 2x20-Pin)
SKU: PRT-32165
This is a simple 2x20-pin male SMD right angle header.
$4.95
In stock
SKU
PRT-32165
Helpful Documentation
Features & Specs
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Contact Finish Thickness - Post: 74.8µin (1.90µm)
- Mfg #: 15-91-0400
