Strato Pi Fan

Name: Strato Pi Fan
SKU: PRT-18103
Price: 28.95 USD

SKU: PRT-18103

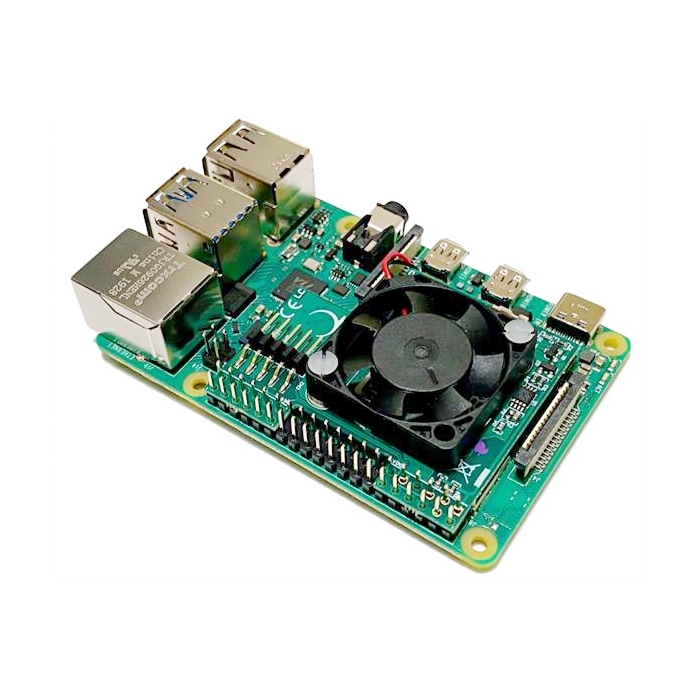

Sfera Labs Strato Pi Fan is used to enhance the Raspberry Pi Model B version 2, 3, and 4 with a high-speed, temperature-controlled fan.

Out of stock

SKU

PRT-18103

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

Sfera Labs Strato Pi Fan is used to enhance the Raspberry Pi Model B version 2, 3, and 4 with a high-speed, temperature-controlled fan. It expands the operating temperature range of the Raspberry Pi. It also reduces or delays CPU throttling under heavy CPU load.

NOTE: Raspberry Pi not included.

Features & Specs

Power supply: 3.3 V, 5 mA, 5.0 V, 130 mA max. (fan on)
Fan speed: 9100 RPM
Fan airflow: 4.9 CFM
Fan noise: 23.6 dBA
Temperature accuracy: ±2 °C
Dimensions: (W x D x H) 50 x 45 x 10 mm
Operating temperature: -20…+70 °C
Storage temperature: -30…+70 °C
Relative humidity: 5% to 90% noncondensing
Weight: 10 g
High performance 9100 RPM, 4.9 CFM (Cubic Feet per Minute) fan
On-board LM75ADP temperature sensor and fan controller, with I²C interface
Slim design pass-through installation on the GPIO connector, compatible with many third-party expansion boards
I²C pin-headers to wire additional I²C devices

Documentation

Datasheet
