Superfast Recovery Rectifier - 50V
COM-17205
Superfast Recovery Rectifier - 50V
SKU: COM-17205
The ES1D-HF Superfast Recovery Rectifier features a reverse voltage of 50V, a 1A forward current, and a maximum recovery time of 35ns.
Out of stock
SKU
COM-17205
Product Overview

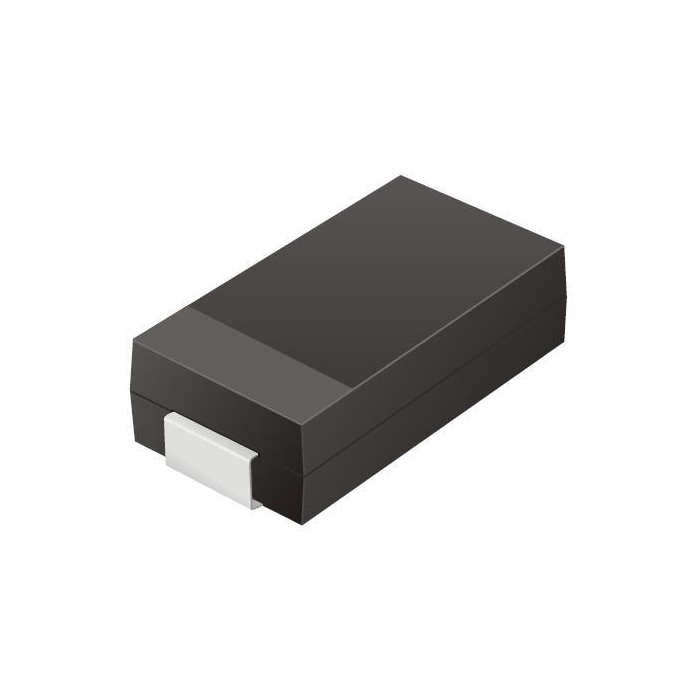

Comchip Technology ES1D-HF Superfast Recovery Rectifier features a reverse voltage of 50V, a 1A forward current, and a maximum recovery time of 35ns. These glass-passivated devices are offered in compact, low-profile, surface mounted, SMA/DO-214AC packages, well suited for automated assembly.
Similar Items
Features & Specs
- Superfast recovery time for high efficiency
- 35ns maximum reverse recovery time
- 50V peak repetitive reverse voltage (VRRM)
- 1A forward rectified current at Tc =125°C
- 30A peak forward surge current
- Glass passivated chip junction
- 75°C/W typical thermal resistance
- -55°C to 150°C operating temperature range
- Pick and place compatible
- Low profile SMA/DO-214AC package
- RoHS compliant and halogen-free
Documentation
Customer Reviews
Superfast Recovery Rectifier - 50V
COM-17205
$0.95 retail price.
Available Discounts
- $0.90 | 25+ units
- $0.86 | 100+ units
