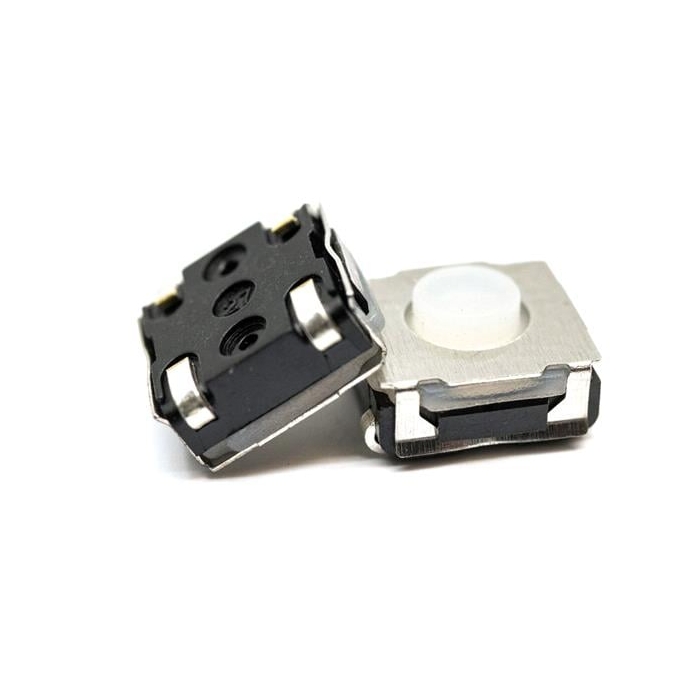

Tactile Switch - 50mA, 12VDC, 3.5mm, 260gf, J lead
COM-17105
Tactile Switch - 50mA, 12VDC, 3.5mm, 260gf, J lead
SKU: COM-17105
In stock
SKU
COM-17105
These Long-Life Tactile Switches offer a very long life expectancy of up to 3,000,000 cycles and are ideal for high use applications.
Product Overview
E-Switch TL3145 Long-Life Tactile Switches offer a very long life expectancy of up to 3,000,000 cycles and are ideal for high use applications. The TL3145 switches are surface mount, top actuated with a round button, and provide IP67 dust/moisture protection ratings. Operating in a temperature range of -40°C to +85°C, the tactile switches feature a 50mA, 12VDC electrical rating with 100mΩ maximum contact resistance. The TL314 switch function of SPST, Off-On appeals to a wide customer base for multiple application uses.
Similar Items
Features & Specs
- Electrical Rating: 50mA, 12VDC
- Electrical Life: up to 3,000,000 Cycles
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500VDC
- Dielectric Strength: 250VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force:
- 180gf ± 50gf (3,000,000 cycles)
- 260gf ± 50gf (500,000 cycles)
- 350gf ± 80gf (500,000 cycles)
- Travel: 0.15mm
- Dust/Moisture Protection: IP67
- Function: SPST, Off-On
Documentation
Customer Reviews
Tactile Switch - 50mA, 12VDC, 3.5mm, 260gf, J lead
COM-17105
Stock and Customer Discounts
$0.95 retail price.
Available Discounts
- $0.90 | 25+ units
- $0.86 | 100+ units
