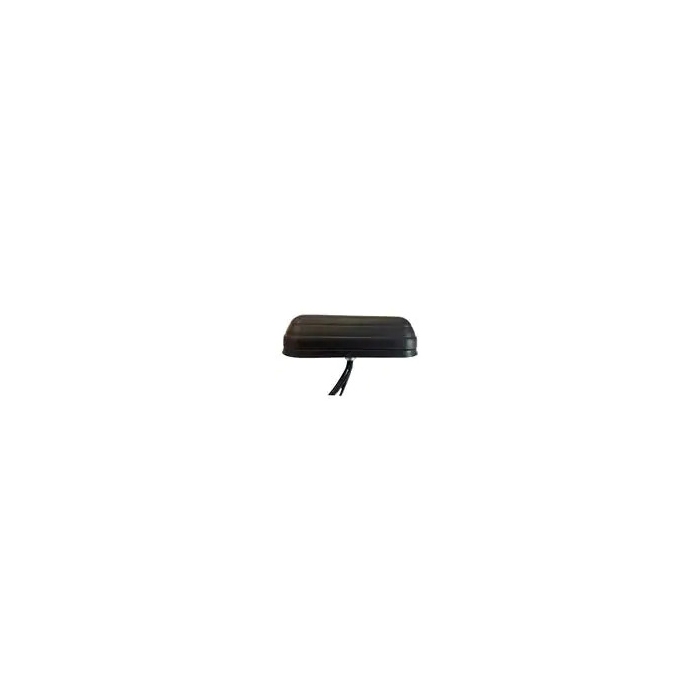

TE Hirschmann Mobility Cellular / GNSS Antenna
GPS-16863
TE Hirschmann Mobility Cellular / GNSS Antenna
SKU: GPS-16863
Out of stock
SKU
GPS-16863
Product Overview
TE Connectivity's Hirschmann CGN 7026 LP S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) Antenna is a combination antenna for positioning and data services. The antenna offers terrestrial-based transmission and satellite-based positioning. The unit features an embedded high-performance, low-noise amplifier (LNA) with a dual-feed ceramic patch antenna and a phase shift network for optimized cross-polarization discrimination(XPD). The antenna can be screw mounted on metallic and non-metallic surfaces. TE Connectivity / Hirschmann CGN 7026 LP S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) Antenna is designed for harsh environment applications.
Similar Items
Features & Specs
- Minimum Frequency: 698 MHz
- Maximum Frequency: 2.69 GHz
- Cellular frequency range
- LTE-LB: 698 to 862MHz
- GSM 850: 824 to 894MHz
- GSM 900: 880 to 960MHz
- GSM 1800: 1710 to 1880MHz
- GSM 1900: 1850 to 1990MHz
- UMTS: 1920 to 2170MHz
- LTE-HB: 2305 to 2690MHz
- GNSS(GPS/GLONASS) frequency range
- GPS: 1.57542GHz ±1.023MHz, (L1-band)
- GLONASS: 1602.0 to 1614.94MHz
- Application: Beidou, Galileo, Glonass, GNSS, GPS
- Electrical Type: Patch
- Gain: 0 dBi, 1 dBic
- Impedance: 50 Ohms
- VSWR: 2:1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Number of Bands: 5 Band
- Termination Style: Connector
- Mounting Style: Screw
- Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
- Protocol - GPS, GLONASS: GNSS
- Length: 124mm
- Width: 80mm
- Height: 31mm
- IP Rating: IP6K6
- Polarization: Linear, RHCP
- Antenna Connector Type: C Male, D Male
- Cable Length: 200mm
- Cable Type: RG-174
