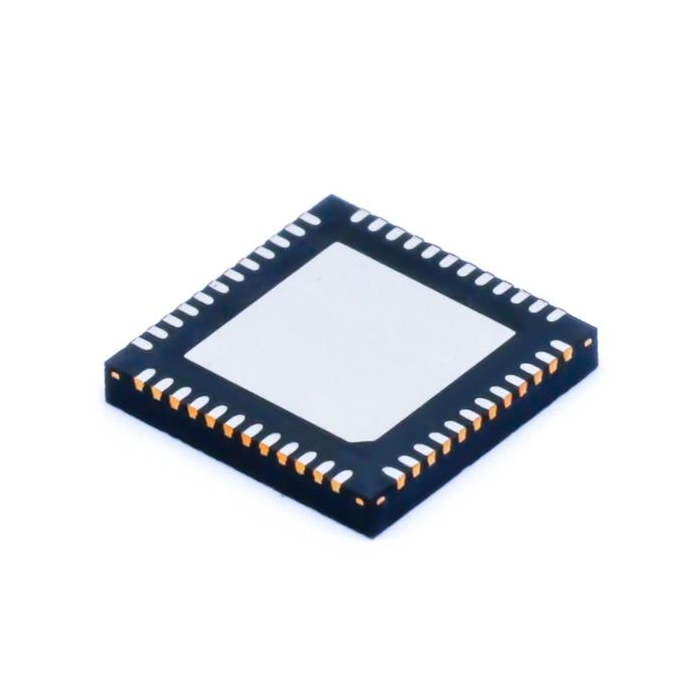

Texas Instruments TPS65994AD USB Type-C & PD Controller
COM-17619
Texas Instruments TPS65994AD USB Type-C & PD Controller
SKU: COM-17619
In stock
SKU
COM-17619
Texas Instruments TPS65994AD USB Type-C & Power Delivery (PD) Controller provides cable plug and orientation detection for two USB Type-C connectors.
Product Overview
Texas Instruments TPS65994AD USB Type-C & Power Delivery (PD) Controller provides cable plug and orientation detection for two USB Type-C connectors. Upon cable attachment, the TPS65994AD performs cable detection according to the USB Type-C specification. It also communicates on the CC wire using the USB PD protocol. When cable detection and USB PD negotiation are complete, the TPS65994AD enables the appropriate power path and configures alternate mode settings (USB4, DisplayPort video, or Thunderbolt) for external multiplexers.
Features & Specs
- Type: Power Delivery
- Port Type: DFP, DRP, UFP
- Standard: USB-C PD
- Speed: Super Speed
- Supply Voltage - Min: 3 V
- Supply Voltage - Max: 22 V
- Operating Supply Current: 1 A
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 125 C
- Packaging: Cut Tape
- Packaging: Reel
- Brand: Texas Instruments
- Interface Type: USB
- Number of Ports: 2 Port
Documentation
Customer Reviews
Texas Instruments TPS65994AD USB Type-C & PD Controller
COM-17619
Stock and Customer Discounts
$6.95 retail price.
Available Discounts
- $6.60 | 25+ units
- $6.26 | 100+ units
