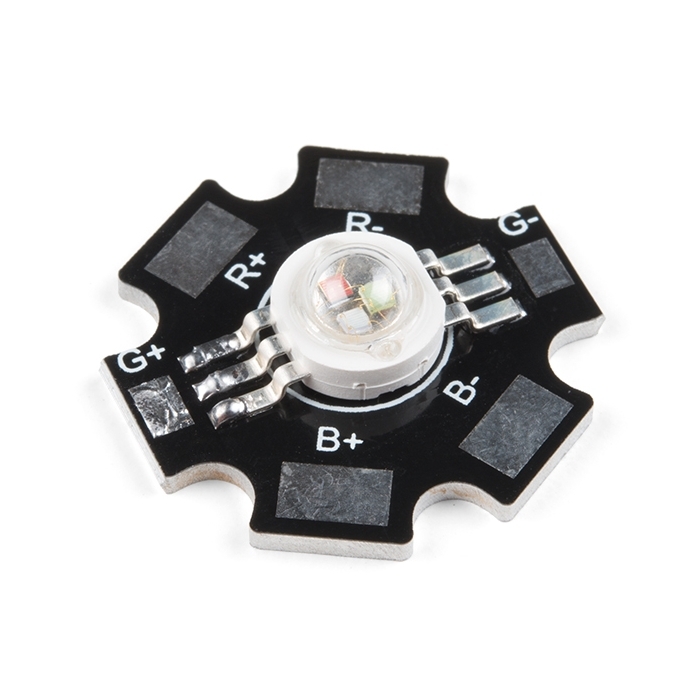

Triple Output High Power RGB LED
COM-15200

Triple Output High Power RGB LED

SKU: COM-15200
$5.50
In stock
SKU
COM-15200
In stock
Stock/Discounts

This 3W per channel, Triple Output High Power RGB LED is sure to shed a lot of light on any project you add it to.

Product Overview

Do not look into the light. You know you want to, but boy will you be sorry. 1W per channel, RGB High Power LEDs in one aluminum backed package. These LEDs will blow you away. Light them up then put a coffee cup over the LED to keep your eyes from seeing dots in the periphery. With all three LEDs at 350mA per channel (3W total output), you will need additional heat sinking.

Features:

  • Viewing angle: 140-150degrees
  • Red: (620-630nm) / 30-40LM
  • Green: (520-525nm) / 40-50LM
  • Blue: (455-465nm) / 10-15LM

Forward Voltage:

  • Red: 2.2-2.6V
  • Green: 3.2-3.8V
  • Blue: 3.2-3.8V

Documents:

Hookup Accessories

Features & Specs

  • Size (approx.): 18mm (D) x 8mm (H)
  • Aluminum PCB for thermal dissipation
  • Operating Voltage:
  • Red: 2.2-2.6V
  • Green: 3.2-3.8V
  • Blue: 3.2-3.8V
  • Wavelength:
  • Red: 620nm
  • Green: 520nm
  • Blue: 460nm
  • Viewing Angle: 140°

Customer Reviews

Triple Output High Power RGB LED
Triple Output High Power RGB LED
$5.50
COM-15200

Stock and Customer Discounts

$5.5 retail price.

Available Discounts

  • $5.23 | 25+ units
  • $4.95 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
