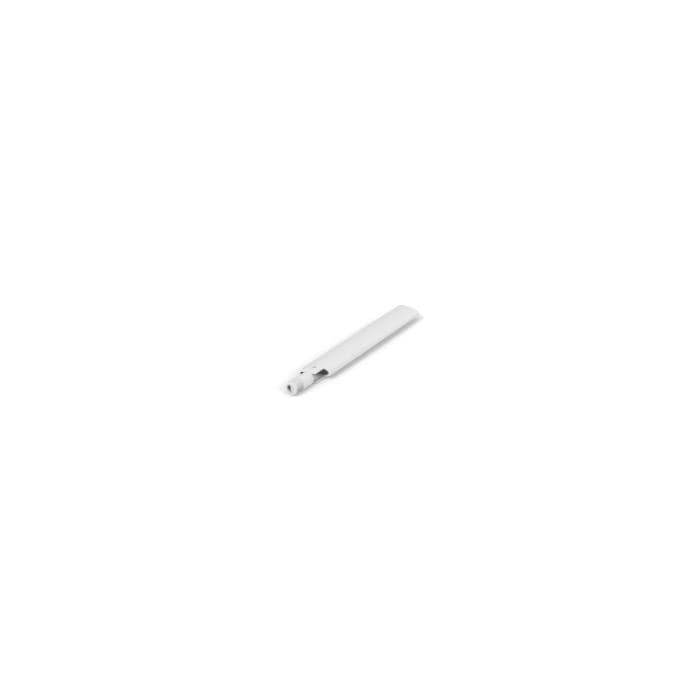

World Band Antenna - White
Wide Band coverage for LTE and 5G with GNSS coverage.
Product Overview
TE Connectivity’s (TE) Antennas for 5G, NB-IoT, and LTE-M provide a variety of band solutions, ranging from 600MHz to 6GHz. The antennas address wide frequency band and various bandwidth demands from the cellular Internet of Things (IoT) devices. This capability helps to enable lower latency and higher peak data rate connection of 5G network and cellular low-power wide-area network (LPWAN) communication. TE Antennas for 5G, NB-IoT, and LTE-M offer robust RF performance, multiple mounting options, and system design flexibility. They are ready to use with no tuning. Typical applications include small cellular base stations, WLAN, IoT devices, tracking devices, as well as smart building and smart city devices.
Features & Specs
- Minimum Frequency: 617 MHz
- Maximum Frequency: 5.925 GHz
- Product: Indoor Antennas
- Product Type: IoT Antennas - LPWAN, LoRaWAN, Sigfox, NB-IoT
- Mechanical Style: Whip
- Gain: 1.4 dBi
- Impedance: 50 Ohms
- VSWR: 3:1
- Power Rating: 10 W
- Minimum Operating Temperature: - 20 C
- Maximum Operating Temperature: + 65 C
- Number of Bands: 6 Band
- Termination Style: Connector
- Length: 135.7 mm
- Width: 20.1 mm
- Polarization: Linear
- Antenna Connector Type: SMA
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $9.45 | 25+ units
- $8.96 | 100+ units
