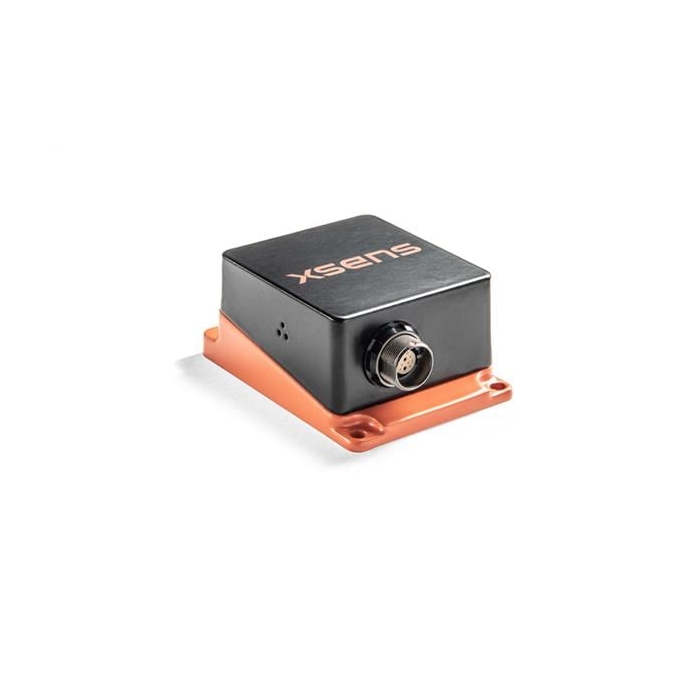

Xsens MTi 610R Rugged IMU
SEN-18529
Xsens MTi 610R Rugged IMU
SKU: SEN-18529
Out of stock
SKU
SEN-18529
Xsens MTi 600-Series Rugged IP68 Sensor Modules are specially designed for harsh environments and feature rugged housing and IP ratings.
Product Overview
Xsens MTi 600-Series Rugged IP68 Sensor Modules are specially designed for harsh environments and feature rugged housing and IP ratings. These inertial motion sensors provide durability in a small form factor for easy integration into applications. The MTi-610R Inertial Measurement Unit (IMU) features an IP68 rating and factory-calibrated inertial data. Xsens MTi 600-Series Rugged IP68 Sensor Modules are supported by the free MT Software Suite, which includes a software development kit (SDK), example codes, drivers for many platforms, and MT Manager, the graphical user interface (GUI) for Windows/Linux.
Similar Items
Hookup Accessories
Features & Specs
- Sensor Type: 9-axis
- Sensing Axis: X, Y, Z
- Sensitivity: 0.001 deg/s/g
- Acceleration: 10000 g
- Interface Type: CAN, RS-232, UART, USB
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 24 V
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 85 C
- Bandwidth: 500 Hz, 520 Hz
- Range: 2000 deg/s
Documentation
Customer Reviews
Xsens MTi 610R Rugged IMU
SEN-18529
Stock and Customer Discounts
$1428.95 retail price.
Available Discounts
- $1,357.50 | 25+ units
- $1,286.06 | 100+ units
