Zener Diode - 12V, 300mW
COM-22001
Zener Diode - 12V, 300mW
SKU: COM-22001
$0.50
In stock
SKU
COM-22001

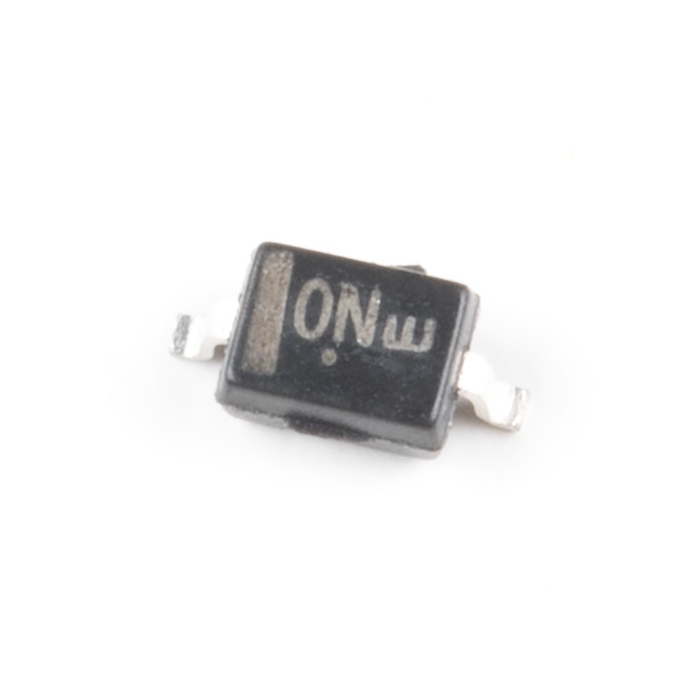

This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 300 mW.
Product Overview
This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium.
Similar Items
Features & Specs
- Voltage - Zener (Nom) (Vz): 12 V
- Tolerance: ±5%
- Power - Max: 300 mW
- Impedance (Max) (Zzt): 25 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 8 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
Documentation
Customer Reviews
Zener Diode - 12V, 300mW
$0.50
COM-22001
Stock and Customer Discounts
$0.5 retail price.
Available Discounts
- $0.48 | 25+ units
- $0.45 | 100+ units
