Datasheet (GHR Connector)Product Overview

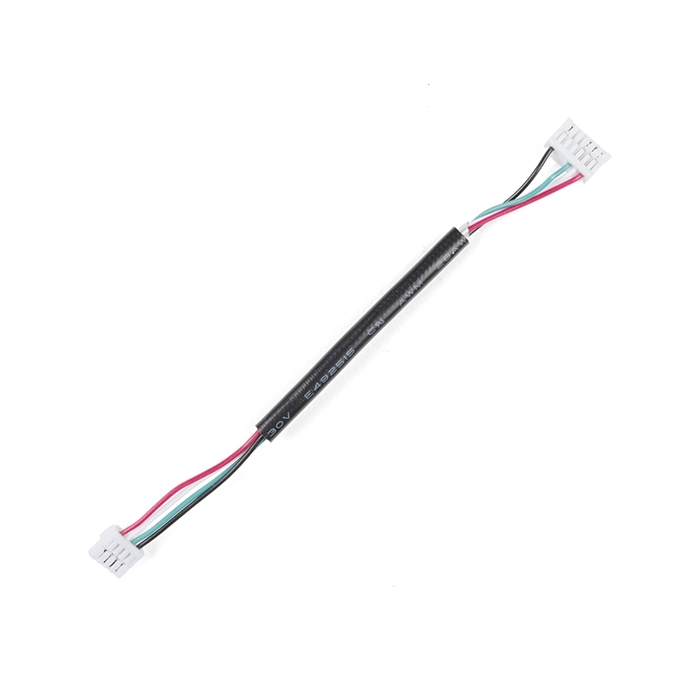

Securely connect your hardware with this 100mm-long GHR-04V-S to GHR-06V-S Cable. This cable is equipped with a four-pin locking JST connector on one end and a six-pin locking JST connector on the other, both utilizing a 1.25mm pitch. These locking connectors are standard on many sensors and telemetry radios that require a connection capable of withstanding significant movement and vibration.
This is one of the cables we recommend for integrating the SparkFun BlueSMiRF v2 - JST into your existing hardware ecosystem without building a custom wiring harness from scratch.
Customizable for Your Project
While this cable works perfectly right out of the package as an adapter, it is also highly customizable to suit your specific hardware requirements:
- Custom Pigtails: You can easily cut and strip the center of the cable to create your own individual four-pin and six-pin pigtail cables with 1.25mm pitch connectors.
- Easy Repinning: If your specific device requires a different wire arrangement, the individual wires can be carefully extracted and repositioned within the connector housing using a precision hobby knife.
This simple cable is perfect for adapting existing modules or building custom sensor nodes.
